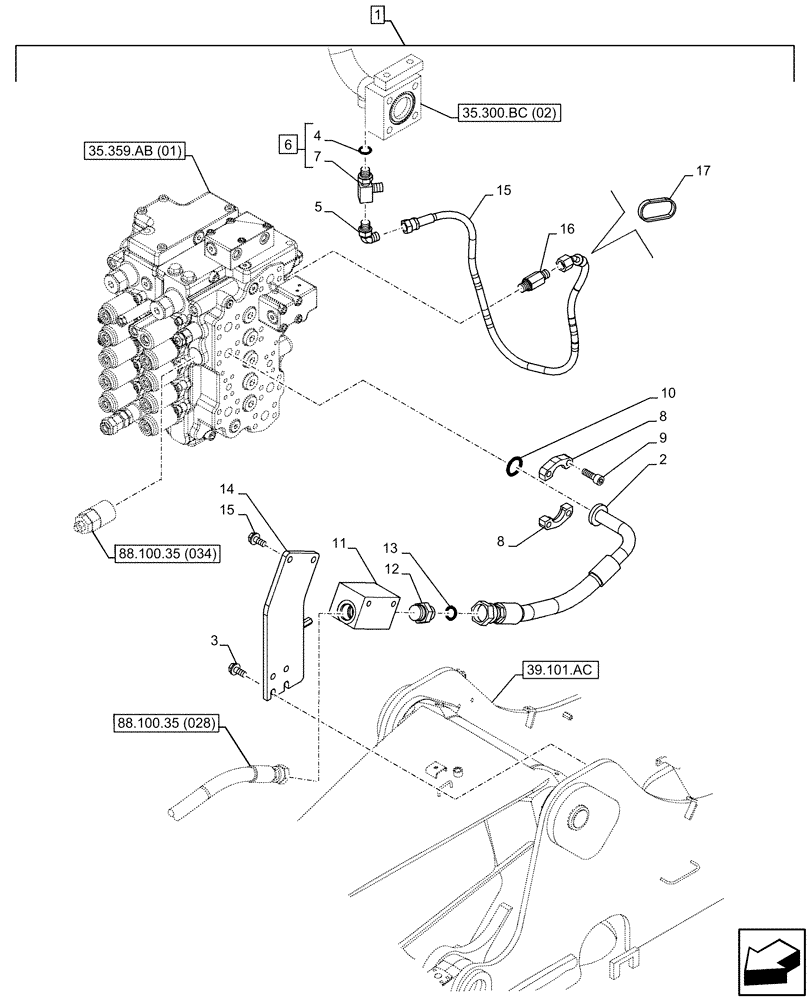

Запчасти Case CX130D (88.100.35[030]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG1NP121-00

CONSTRUCTION DIA

Single Acting Circuit Kit, Incl 2 - 17

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ12830

HOSE ASSY.

15mm ID x 400mm

1шт.

3

166352A1

BOLT

M12x 30mm

6шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

KHJ28580

ELBOW

1шт.

6

KHJ2773

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 4, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

153458A1

FLANGE

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

161097A1

O-RING

1шт.

11

KRJ12170

MANIFOLD VALVE

1шт.

12

KHJ1941

FITTING

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KNJ14840

BRACKET

LH

1шт.

15

KHJ2033

HOSE

1шт.

16

KHJ13640

STUD

1шт.

17

150496A1

MOUNTING CLIP

250mm

3шт.
