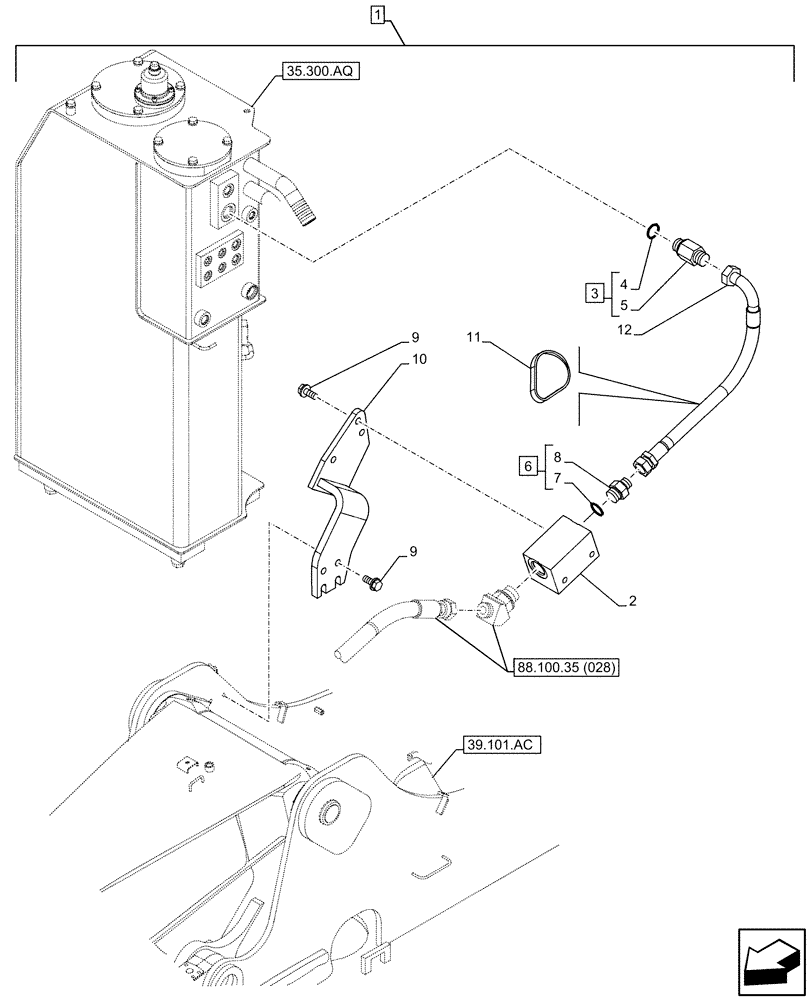

Запчасти Case CX130D (88.100.35[029]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, MANIFOLD VALVE, LINE (88) - ACCESSORIES

1

KG1NP121-00

CONSTRUCTION DIA

Single Acting Circuit Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KRJ12170

MANIFOLD VALVE

1шт.

3

KAJ2917

ADAPTER

ASSY, Incl 4, 5

1шт.

4

154503A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

169040A1

ADAPTER

ASSY, G1" X G3/4", Incl 7, 8

1шт.

7

154523A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

166352A1

BOLT

M12 x 30mm

6шт.

10

KNJ14830

BRACKET

RH

1шт.

11

150496A1

MOUNTING CLIP

250mm

1шт.

12

KRJ32660

HYDRAULIC HOSE

19mm ID x 620mm

1шт.
