(88.100.35[016]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE

Запчасти Case CX130D (88.100.35[016]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

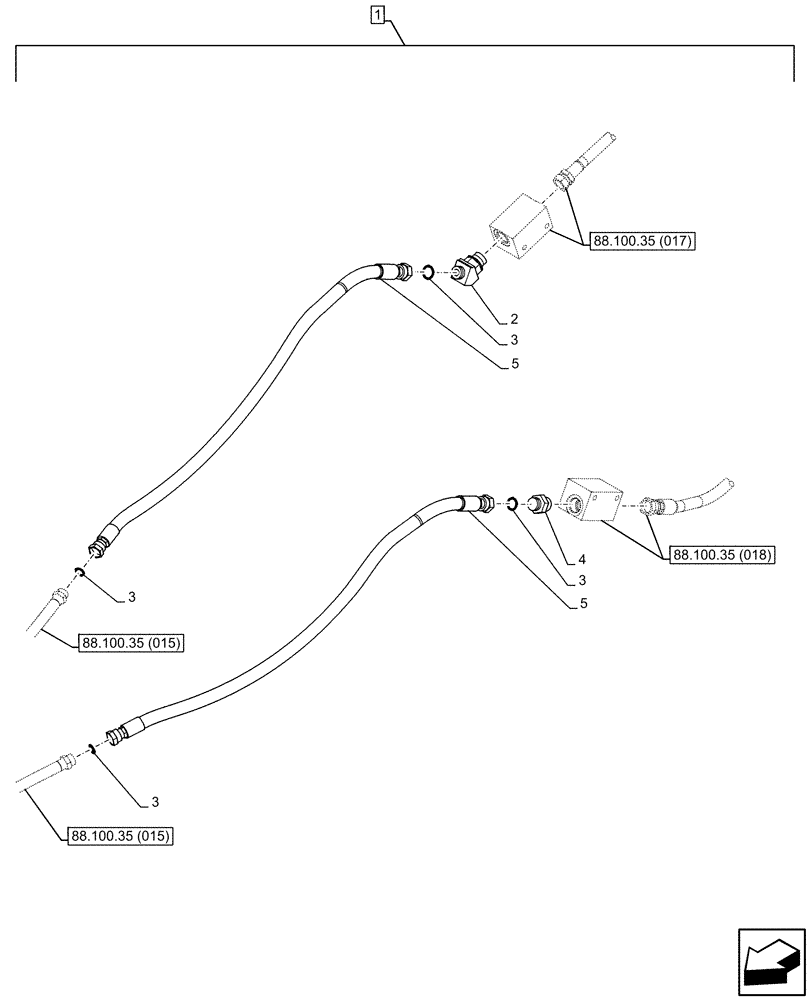

Схема запчастей Case CX130D - (88.100.35[016]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
1
5
3
88.100.35 (018)
2
5
3
88.100.35 (015)
88.100.35 (017)
88.100.35 (015)
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP119-00

CONSTRUCTION DIA

Simple Acting Circuit Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ16290

ELBOW

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

4

KHJ1941

FITTING

1шт.

5

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

2шт.

Выбрано товаров: 6
