Запчасти Case CX130D (88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES

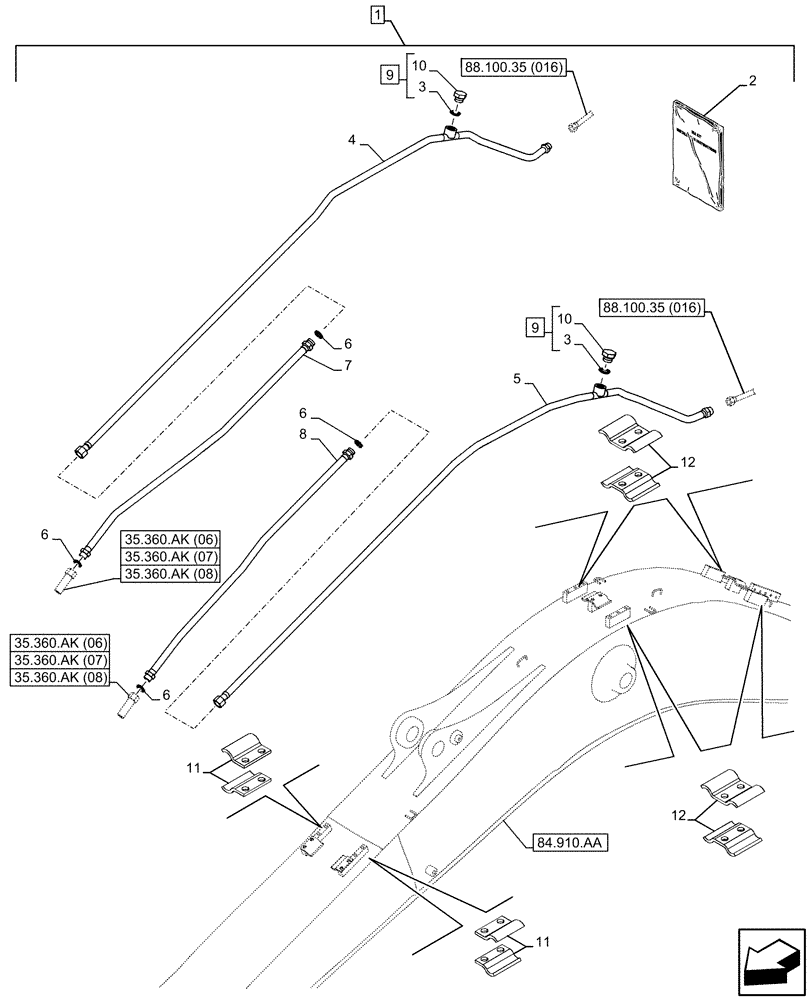

Схема запчастей Case CX130D - (88.100.35[015]) - DIA KIT, HAMMER CIRCUIT, W/ HYDRAULIC CONTROL, BOOM, LINE (88) - ACCESSORIES
35.360.ak (06)
35.360.ak (08)
5
35.360.ak (06)
7
6
8
84.910.aa
6
3
10
9
35.360.ak (07)
88.100.35 (016)
11
4
1
12
35.360.ak (07)
11
12
2
3
88.100.35 (016)
6
35.360.ak (08)
9
10
6

Артикул

Название

Примечание

Количество

1

KG1NP119-00

CONSTRUCTION DIA

Single Acting Circuit Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900064

INSTRUCTION

1шт.

2

47900358

INSTRUCTION

1шт.

3

154503A1

O-RING

2шт.

4

KNV16830

HYD TUBE

1шт.

5

KNV16820

HYD TUBE

1шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

7

KNV22950

PIPE

1шт.

8

KNV22940

PIPE

1шт.

9

152924A1

PLUG

ASSY, G3/4", Incl 3, 10

2шт.

10

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

2шт.

11

KHV10460

COLLAR CLAMP

4шт.

12

KHV10450

COLLAR CLAMP

8шт.

Выбрано товаров: 14
