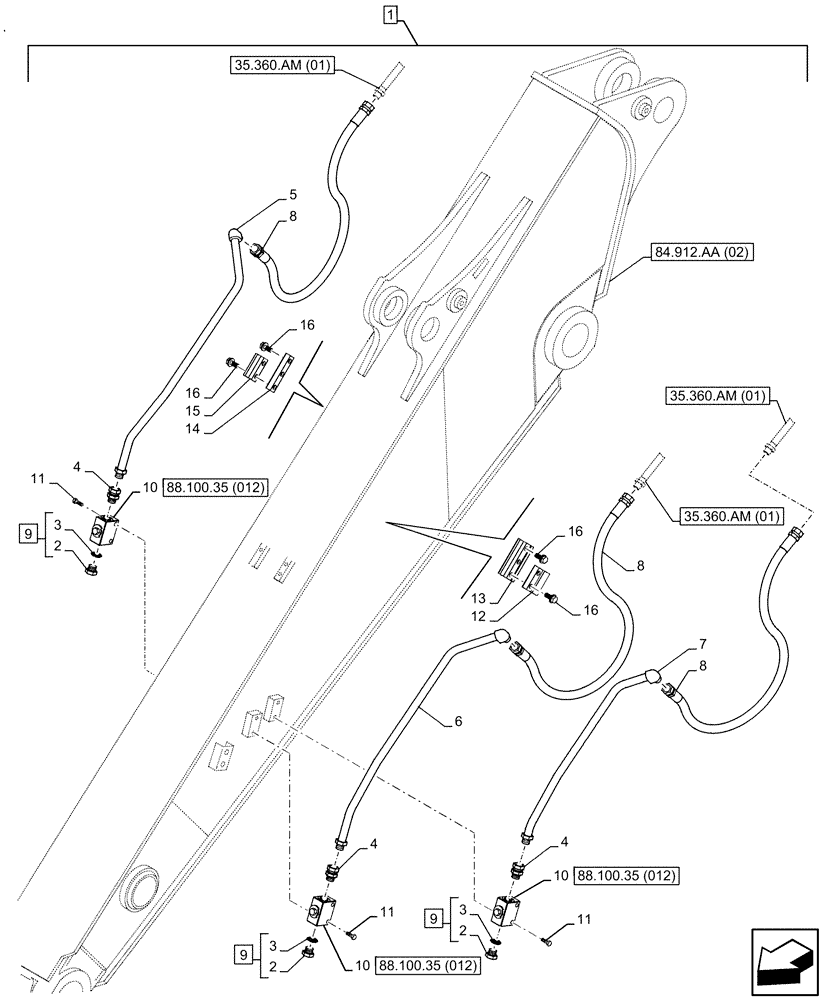

Запчасти Case CX130D (88.100.35[011]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, STANDARD (L=2.5M) (88) - ACCESSORIES

1

KG0NP481-00

CONSTRUCTION DIA

Auxiliary Hydraulic Low Flow, Standard Arm, L=2.5m, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KNV16900

HYD TUBE

1шт.

6

KNV16890

HYD TUBE

1шт.

7

KNV16910

HYD TUBE

1шт.

8

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

3шт.

9

159085A1

PLUG

ASSY, Incl 2, 3

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

2шт.

13

KHV10490

COLLAR CLAMP

2шт.

14

KHV10510

COLLAR CLAMP

2шт.

15

KHV10500

COLLAR CLAMP

2шт.

16

166352A1

BOLT

12шт.
