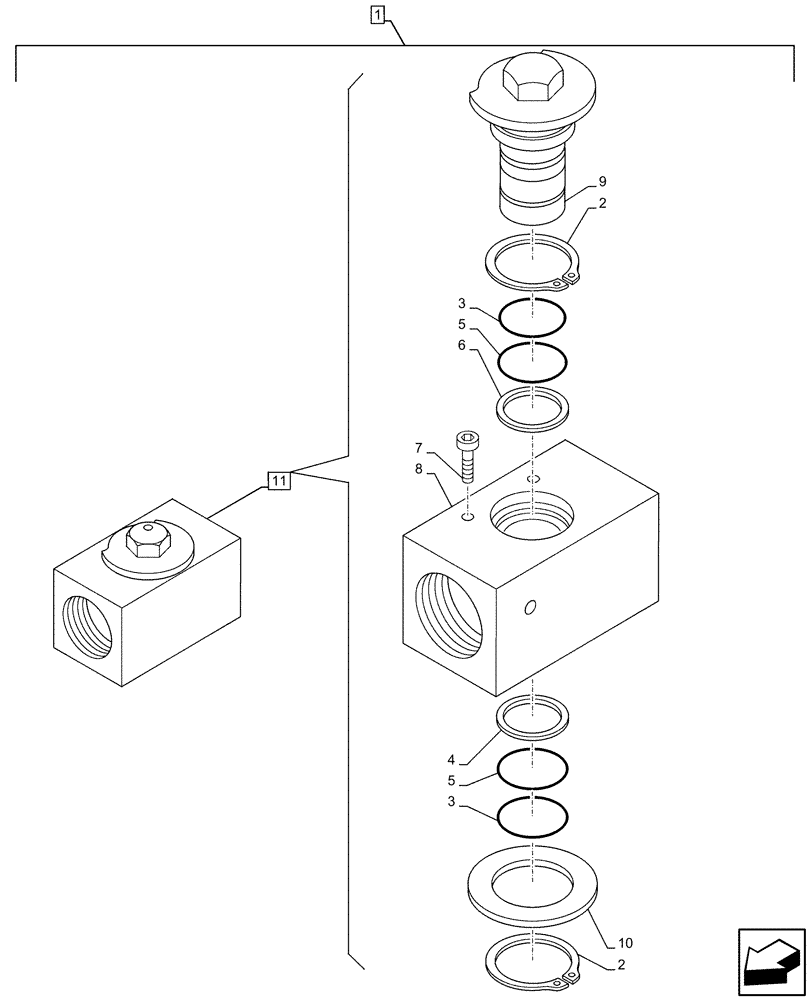

Запчасти Case CX130D (88.100.35[008]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, STOP, VALVE, COMPONENTS (88) - ACCESSORIES

1

KG0NP480-00

CONSTRUCTION DIA

Auxiliary Hydraulic Long Arm, L=3.01m, Incl 2 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Lock Ring, Incl in 11

2шт.

3

154503A1

O-RING

2шт.

4

154001A1

BACK-UP RING

1шт.

5

154528A1

O-RING

2шт.

6

153982A1

BACK-UP RING

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 11

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 11

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 11

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Incl in 11

1шт.

11

KHV10710

VALVE

ASSY, Incl 2 - 10

1шт.
