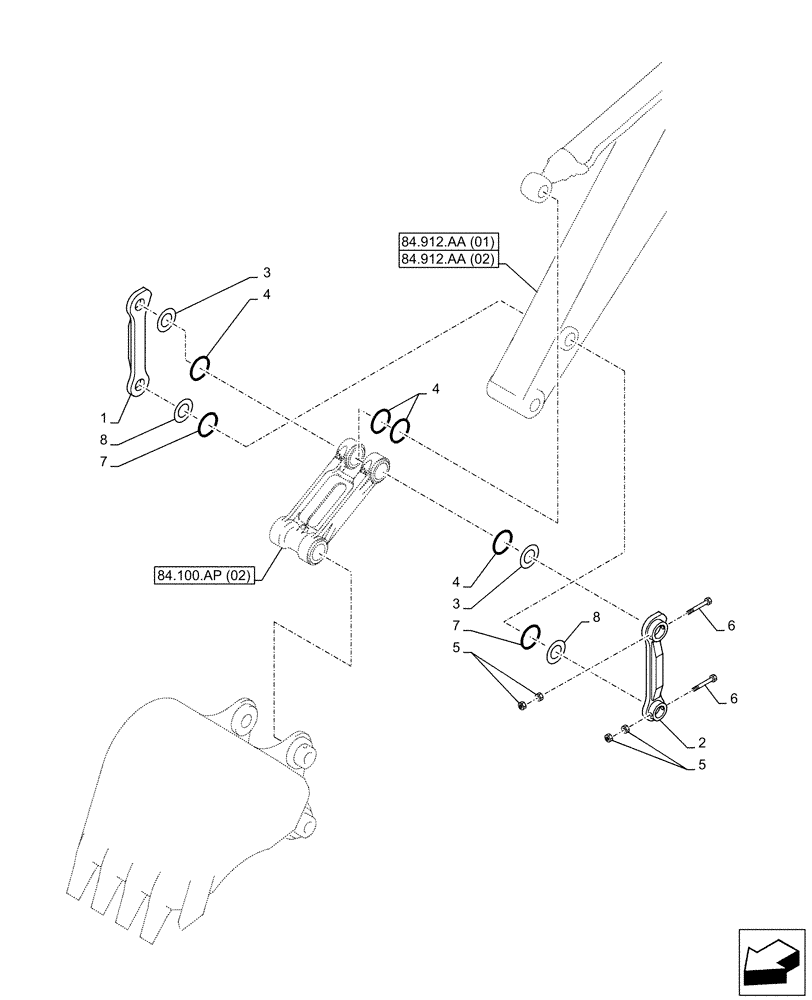

Запчасти Case CX130D (84.100.AC[02]) - VAR - 461023, 481064 - LINK CONROD, W/O HOOK, SAFETY VALVE (84) - BOOMS, DIPPERS & BUCKETS

1

KNV1476

LINKAGE YOKE

1шт.

2

KNV1475

LINKAGE YOKE

1шт.

3

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

2шт.

4

162994A1

O-RING

4шт.

5

829-13416

NUT,M16 x 1.5, Cl 10

4шт.

6

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

2шт.

7

153687A1

O-RING,95mm ID x 7mm OD

2шт.

8

150502A1

SHIM,71mm ID x 135mm OD x 1.2mm Thk

2шт.
