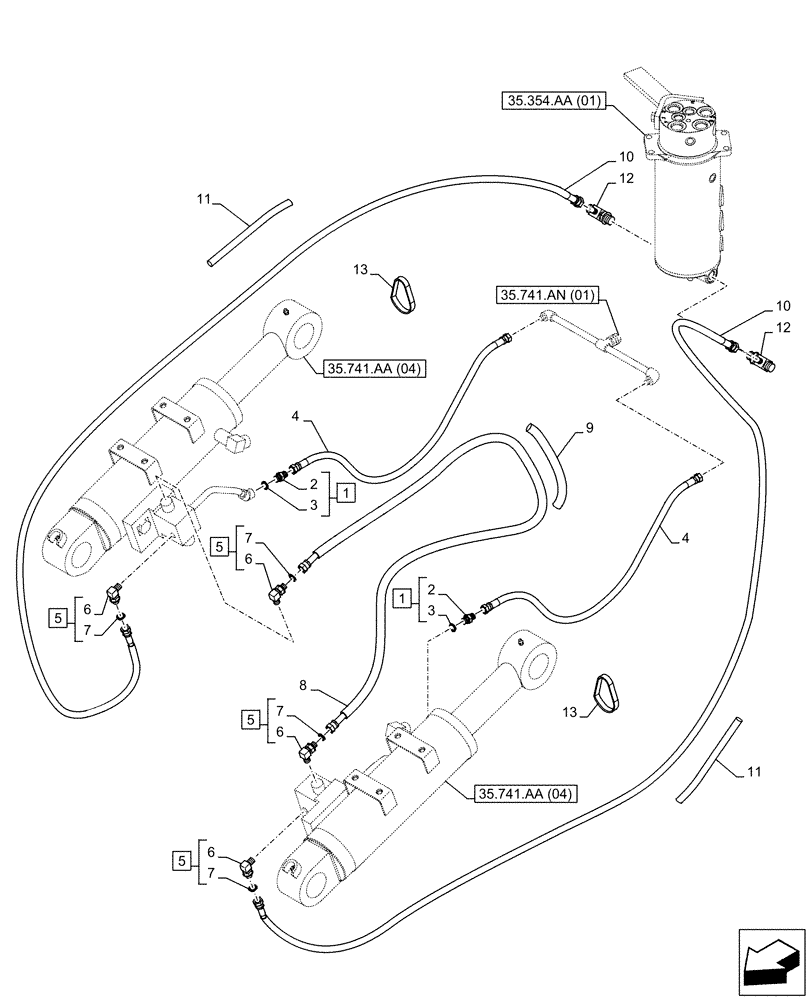

Запчасти Case CX130D (35.741.AN[04]) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX130D - (35.741.AN[04]) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5366603.png)
6
9
5
7
4
5
6
6
12
35.741.aa (04)
6
13
1
13
35.741.an (01)
1
12
7
2
11
7
10
8
3
35.741.aa (04)
35.354.aa (01)
3
4
2
7
5
10
11
5
№
Артикул
Название
Примечание
Количество
1
152128A1
HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT
ASSY, Incl 2 - 3
2шт.
2
NSS
NOT SOLD SEPARAT
Fitting, Incl in 1
2шт.
3
150031A1
O-RING,10mm ID x 24mm OD
2шт.
4
KMV18680
HYDRAULIC HOSE
950mm
2шт.
5
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
ASSY G1/4" x G1/4", Incl 6 - 7
4шт.
6
NSS
NOT SOLD SEPARAT
90° Fitting, Incl in 1
4шт.
7
150960A1
O-RING,10.8mm ID x 2.4mm Width
4шт.
8
169252A1
HYDRAULIC HOSE,6.30 mm ID x 3000.00 mm
6mm ID x 3000mm
1шт.
9
169253A1
HYD TUBE
15mm ID x 2900mm
1шт.
10
159004A1
HOSE
04mm ID x 2150mm
2шт.
11
151942A1
PLASTIC-RUBBER TUBE
2шт.
12
KHJ19970
TEE
2шт.
13
150067A1
MOUNTING CLIP
10шт.
