(35.741.AN[03]) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE

Запчасти Case CX130D (35.741.AN[03]) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS

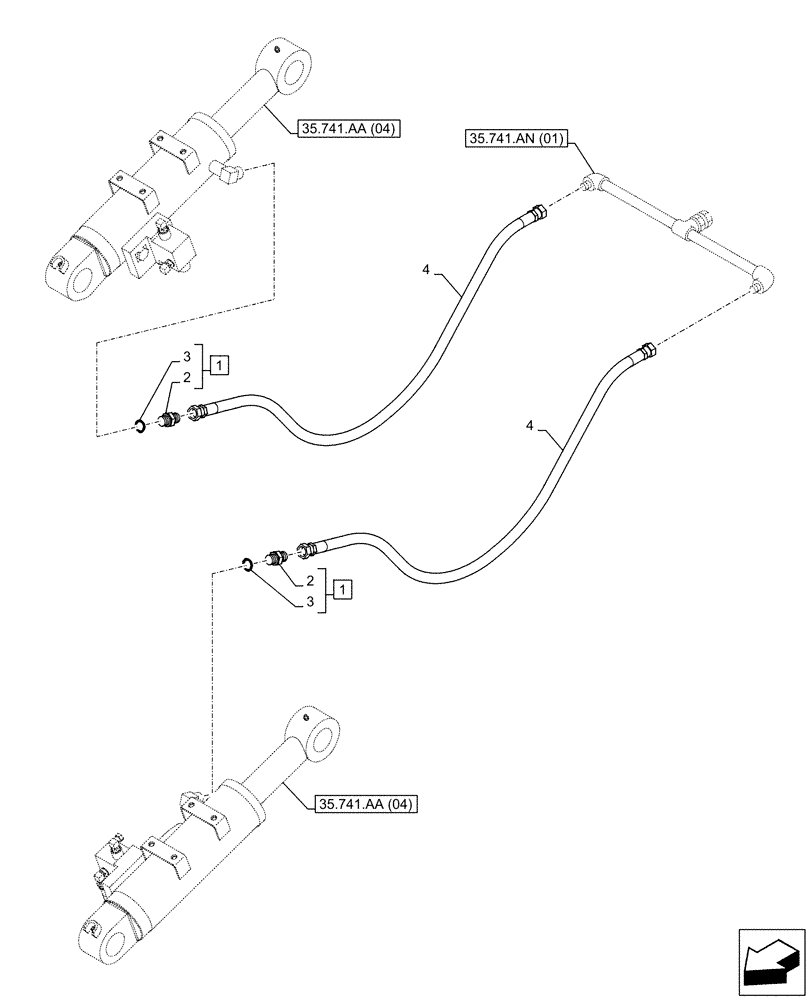

Схема запчастей Case CX130D - (35.741.AN[03]) - VAR - 481064 - DOZER BLADE, LIFT CYLINDER, LINES, SAFETY VALVE (35) - HYDRAULIC SYSTEMS
1
3
35.741.aa (04)
35.741.an (01)
4
2
4
2
35.741.aa (04)
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY G3/8" x G3/8", Incl 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150031A1

O-RING,10mm ID x 24mm OD

1шт.

4

KMV18680

HYDRAULIC HOSE

950mm

2шт.

Выбрано товаров: 4
