(35.741.AN[02]) - DOZER BLADE, LIFT CYLINDER, LINES

Запчасти Case CX130D (35.741.AN[02]) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

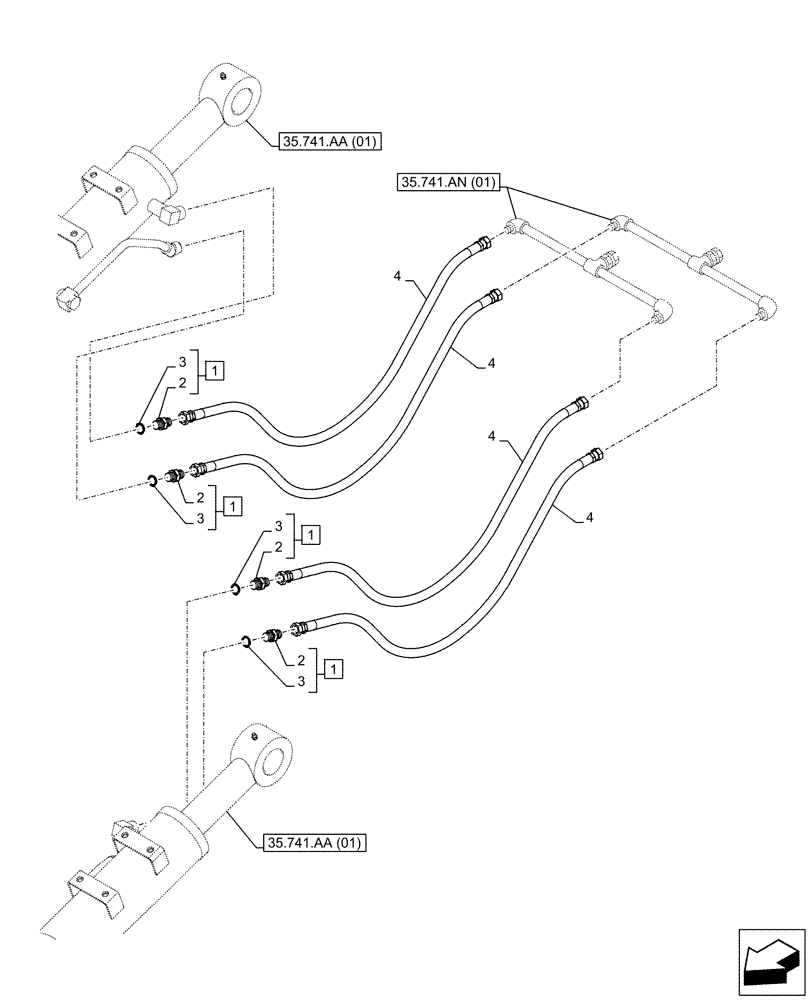

Схема запчастей Case CX130D - (35.741.AN[02]) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
3
1
2
4
35.741.aa (01)
4
2
2
3
1
2
35.741.an (01)
3
1
35.741.aa (01)
4
4
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY G3/8" x G3/8", Incl 2 - 3

4шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

4шт.

3

154475A1

O-RING

4шт.

4

KMV18680

HYDRAULIC HOSE

950mm

4шт.

Выбрано товаров: 4
