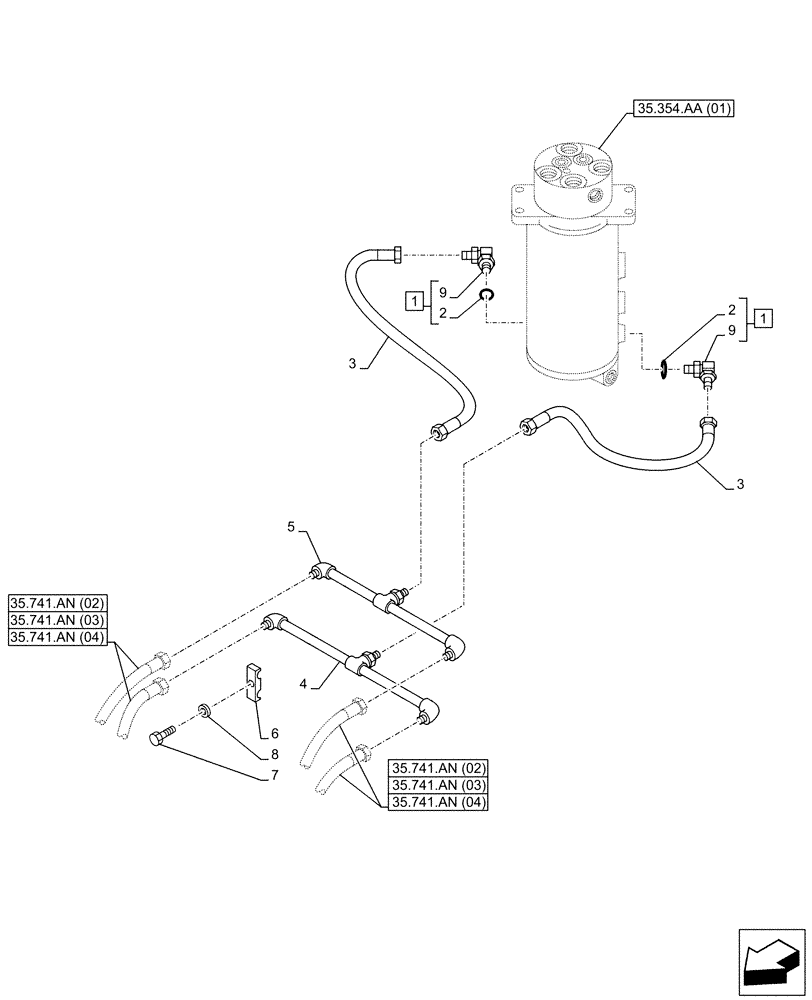

Запчасти Case CX130D (35.741.AN[01]) - DOZER BLADE, LIFT CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

ASSY, Incl 2, 9

2шт.

2

150539A1

O-RING

2шт.

3

KAV0390

HYDRAULIC HOSE,12.70 mm ID x 750.00 mm

2шт.

4

168686A1

HYD TUBE,11 mm ID, 15 mm OD

1шт.

5

168687A1

HYD TUBE,11 mm ID, 15 mm OD

1шт.

6

168674A1

COLLAR

2шт.

7

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

M10 x 50mm

2шт.

8

150409A1

WASHER

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

2шт.
