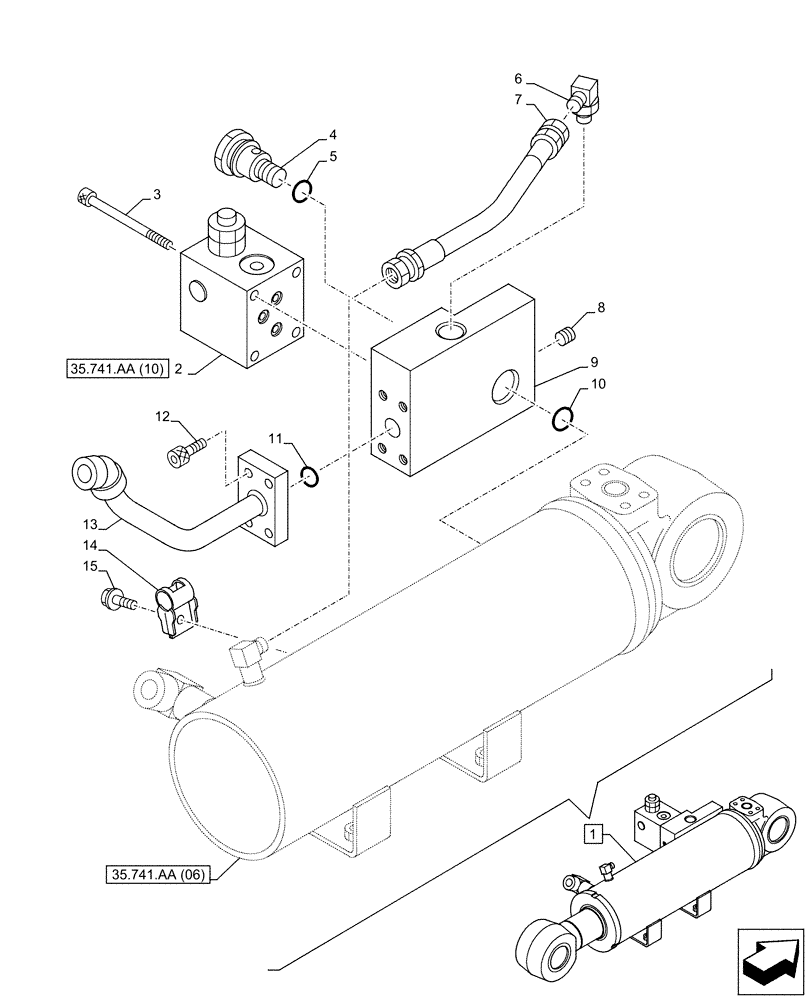

Запчасти Case CX130D (35.741.AA[09]) - VAR - 481064 - LIFT CYLINDER, BLADE, SAFETY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KMV18520

HYDRAULIC CYLINDER

ASSY, Incl 2 - 15

1шт.

See also Figure 35.741.AA (04), 35.741.AA (06), 35.741.AA (10), 86.110.AG (03)

1шт.

2

LJ00991

SAFETY VALVE

ASSY

1шт.

3

863-8080

HEX SOC SCREW,M8 x 80mm, Cl 12.9

M8 X 80mm

4шт.

4

LK00352

PLUG

1шт.

5

155095A1

O-RING

1шт.

6

LK00402

FITTING

1шт.

7

LK006540

HOSE

1шт.

8

TLU0003

PLUG

1шт.

9

LR00925

VALVE BLOCK

1шт.

10

169204A1

O-RING

1шт.

11

154499A1

O-RING

1шт.

12

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

M8 x 25mm

4шт.

13

LK006550

PIPE

1шт.

14

LS00209

COLLAR

1шт.

15

LA00789

BOLT,Spcl

1шт.
