(35.741.AA[05]) - VAR - 481064 - LIFT CYLINDER, BLADE, SAFETY VALVE, COMPONENTS

Запчасти Case CX130D (35.741.AA[05]) - VAR - 481064 - LIFT CYLINDER, BLADE, SAFETY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

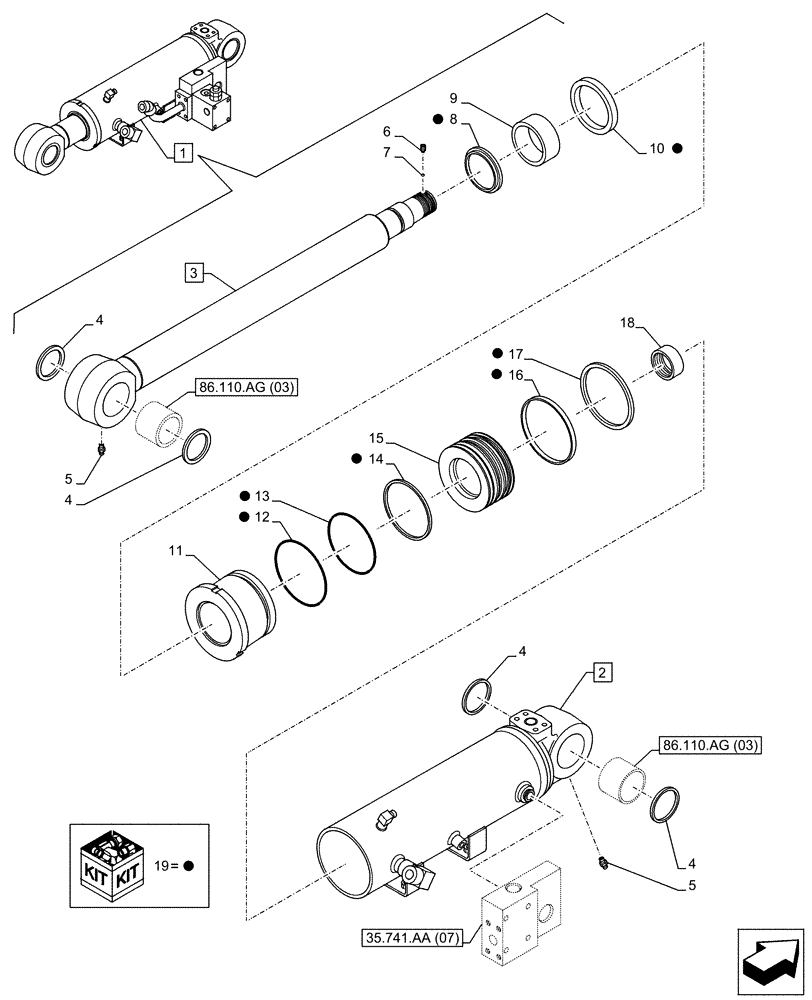

Схема запчастей Case CX130D - (35.741.AA[05]) - VAR - 481064 - LIFT CYLINDER, BLADE, SAFETY VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
17
10
4
19
4
19
18
19
9
1
19
4
19
5
5
12
19
14
6
35.741.aa (07)
3
19
13
86.110.ag (03)
15
19
16
86.110.ag (03)
11
7
4
19
8
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV18510

HYDRAULIC CYLINDER

ASSY, Incl 2 - 19

1шт.

See also Figure 35.741.AA (04), 35.741.AA (07), 35.741.AA (08), 86.110.AG (03)

1шт.

2

LZ011490

TUBE

ASSY

1шт.

See also Figure 86.110.AG (03)

1шт.

3

LZ011500

PISTON ROD

ASSY

1шт.

See also Figure 86.110.AG (03)

1шт.

4

KHV0260

WIPER SEAL

4шт.

5

153630A1

LUBE NIPPLE

2шт.

6

156223A1

SET SCREW

1шт.

7

155977A1

BALL

1шт.

8

LE00420

SEAL

1шт.

9

LB014900

BUSHING

1шт.

10

MBP0211

O-RING

1шт.

11

LU003040

CYLINDER END CAP

1шт.

12

LE020330

O-RING

1шт.

13

154741A1

O-RING

1шт.

14

LE020320

RING

1шт.

15

LJ019450

PISTON

1шт.

16

LE00703

RING

2шт.

17

160824A1

SEALING RING

1шт.

18

LA00773

SPECIAL NUT

1шт.

19

LZ011480

SEAL KIT

1шт.
