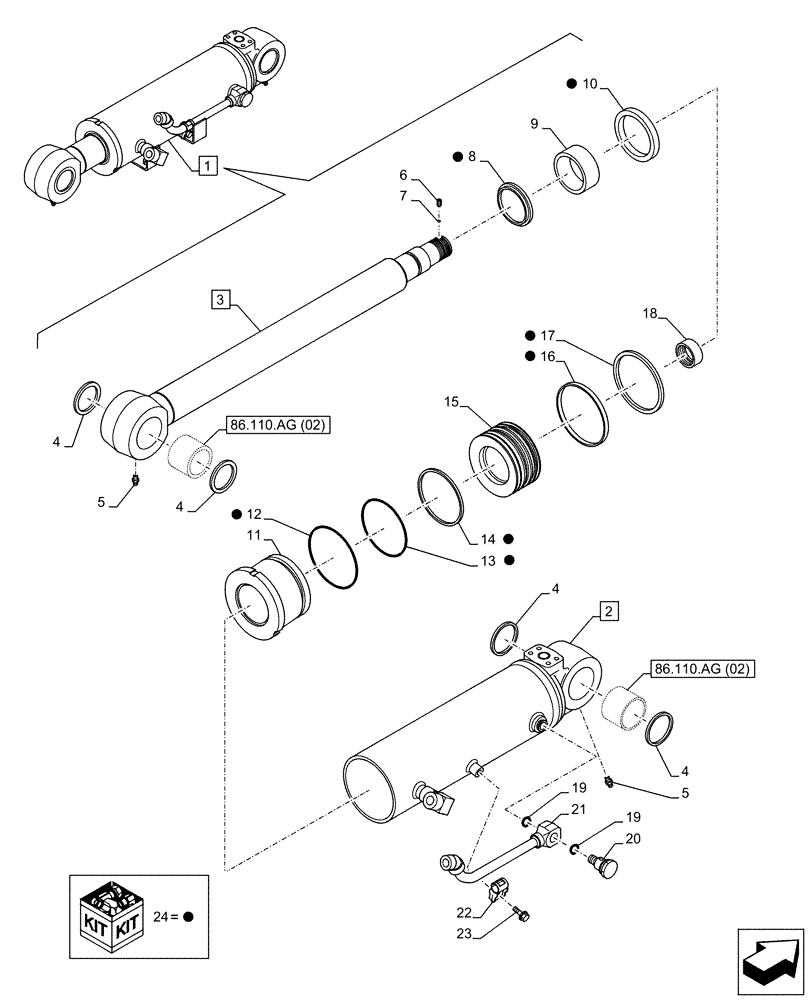

Запчасти Case CX130D (35.741.AA[02]) - LIFT CYLINDER, BLADE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KMV18480

HYDRAULIC CYLINDER

ASSY Cylinder Blade RH, Incl 2 - 24

1шт.

See also Figure 86.110.AG (02)

1шт.

2

LZ011530

TUBE

ASSY

1шт.

See also Figure 86.110.AG (02)

1шт.

3

LZ011500

PISTON ROD

ASSY

1шт.

See also Figure 86.110.AG (02)

1шт.

4

KHV0260

WIPER SEAL

4шт.

5

153630A1

LUBE NIPPLE

2шт.

6

156223A1

SET SCREW

1шт.

7

155977A1

BALL

1шт.

8

LE00420

SEAL

1шт.

9

LB014900

BUSHING

1шт.

10

MBP0211

O-RING

1шт.

11

LU003040

CYLINDER END CAP

1шт.

12

154751A1

O-RING

1шт.

13

154741A1

O-RING

1шт.

14

LE020320

RING

1шт.

15

LJ019450

PISTON

1шт.

16

LE00703

RING

2шт.

17

160824A1

SEALING RING

1шт.

18

LA00773

SPECIAL NUT

1шт.

19

155095A1

O-RING

2шт.

20

LK00352

PLUG

1шт.

21

LK006560

PIPE

1шт.

22

LS00209

COLLAR

1шт.

23

LA00789

BOLT,Spcl

1шт.

24

LZ011480

SEAL KIT

1шт.
