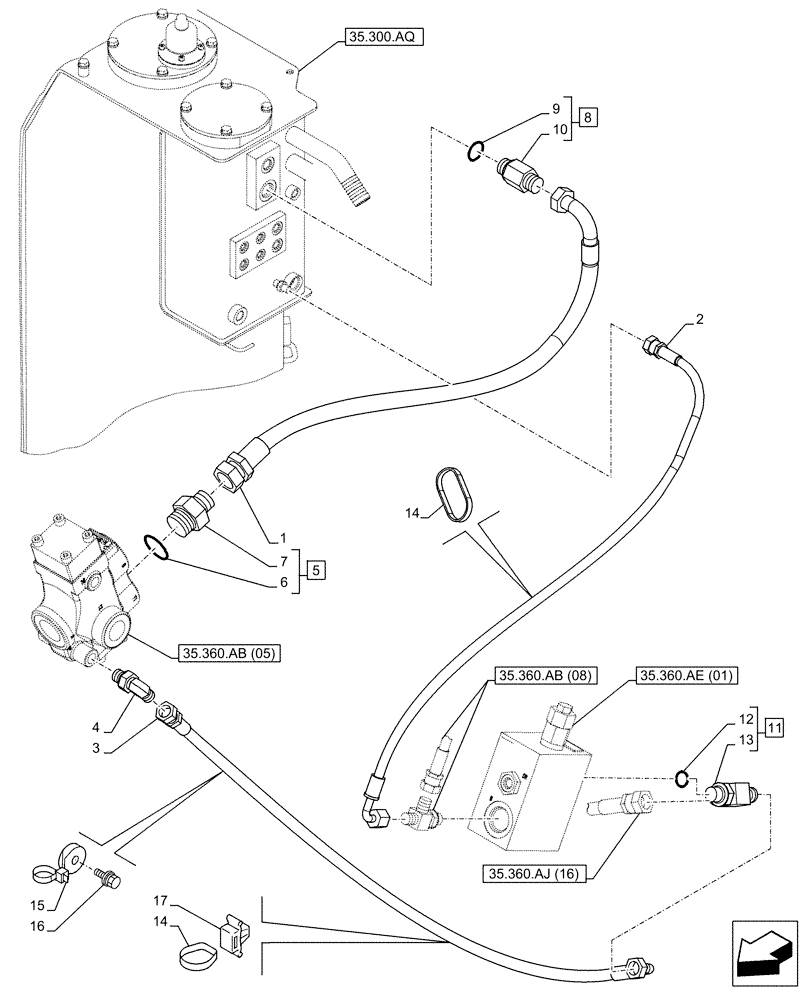

Запчасти Case CX130D (35.360.AB[09]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KRJ32660

HYDRAULIC HOSE

19mm ID x 620mm

1шт.

2

KHJ34620

HOSE

6mm ID x 1400mm

1шт.

3

KHJ34610

HYDRAULIC HOSE

6mm ID x 1750mm

1шт.

4

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

5

169040A1

ADAPTER

ASSY, G1" x G3/4", Incl 6, 7

1шт.

6

152211A1

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

1шт.

8

KAJ2917

ADAPTER

ASSY, Incl 9, 10

1шт.

9

150542A1

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

1шт.

11

159497A1

TEE

ASSY, Incl 12, 13

1шт.

12

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

13

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.

14

150496A1

MOUNTING CLIP

250mm

7шт.

15

KHR2584

CLAMP

M8

2шт.

16

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

17

KHR10220

MOUNTING CLIP

1шт.
