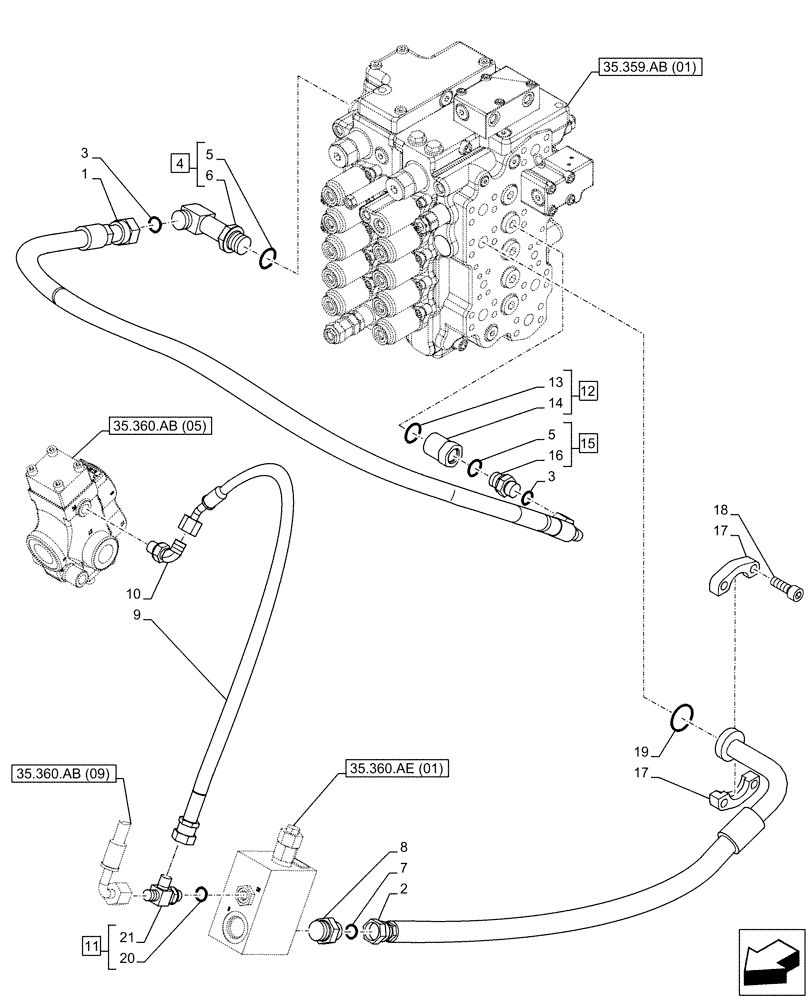

Запчасти Case CX130D (35.360.AB[08]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

12mm ID x 930mm

1шт.

2

KNJ12830

HOSE ASSY.

15mm ID x 400mm

1шт.

3

KHJ2587

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150539A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ1941

FITTING

1шт.

9

KHJ33840

HOSE

6mm ID x 850mm

1шт.

10

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

11

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", 20, 21

1шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

163286A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

153458A1

FLANGE

2шт.

18

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

19

161097A1

O-RING

1шт.

20

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

21

NSS

NOT SOLD SEPARAT

Tee, Incl in 11

1шт.
