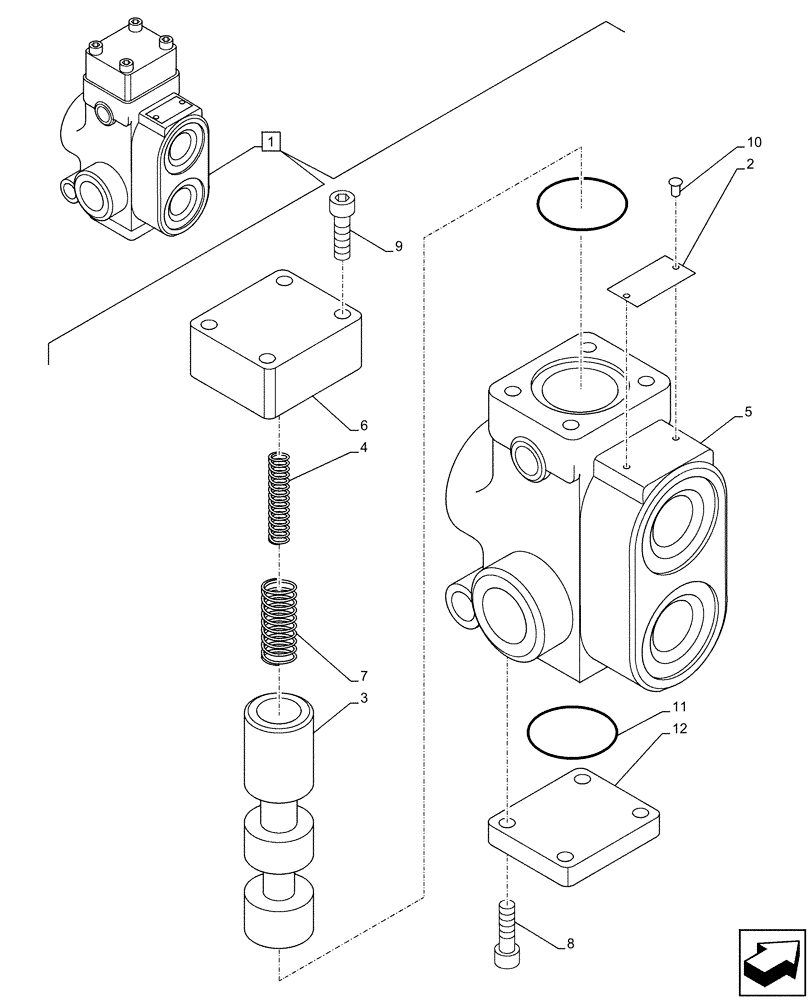

Запчасти Case CX130D (35.360.AB[06]) - VAR - 461868, 461869 - DIRECTIONAL CONTROL VALVE, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KHJ10420

VALVE SECTION

ASSY, Incl 2 - 12

1шт.

2

NSS

NOT SOLD SEPARAT

Name Plate, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

4

LG005800

COMPRESSION SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

6

LW004970

COVER

1шт.

7

LG005810

COMPRESSION SPRING

1шт.

8

108R008Y025N

BOLT

4шт.

9

108R008Y045R

BOLT

4шт.

10

LA00769

RIVET

2шт.

11

154569A1

O-RING

2шт.

12

LW004960

COVER

1шт.
