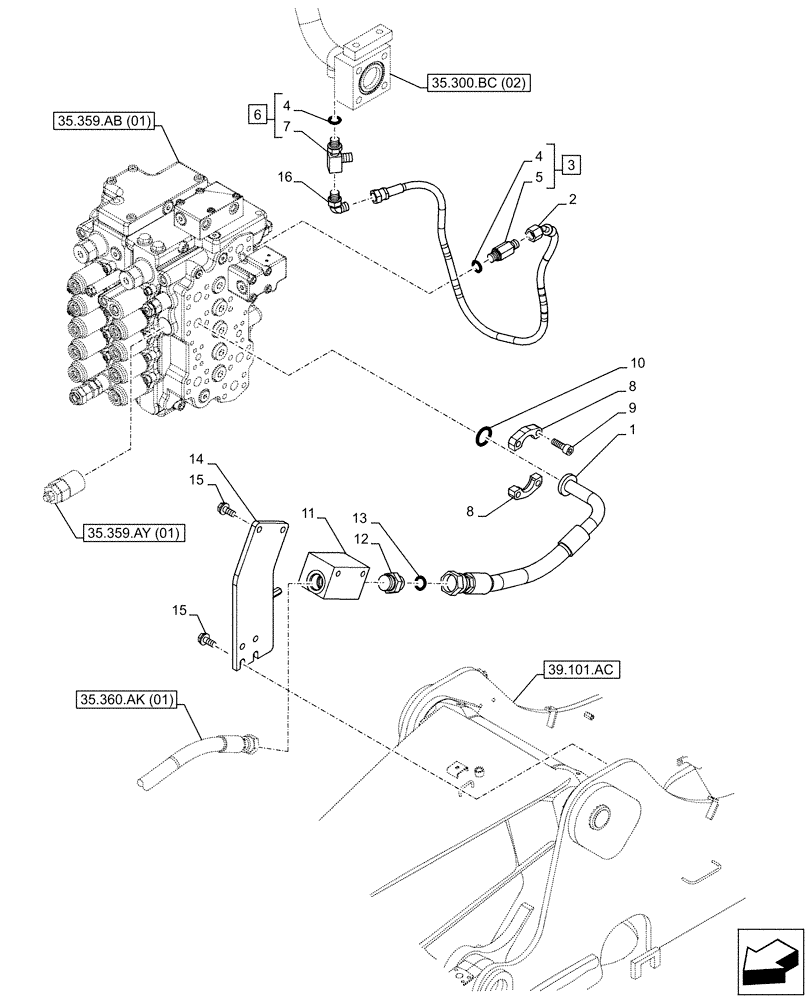

Запчасти Case CX130D (35.360.AB[02]) - VAR - 461561, 461865 - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

1

KNJ12830

HOSE ASSY.

15mm ID x 400mm

1шт.

2

KHJ14910

HYDRAULIC HOSE,6.35 mm ID x 800.00 mm

6mm ID x 800mm

1шт.

3

162554A1

FITTING

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

KHJ2773

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

153458A1

FLANGE

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

10

161097A1

O-RING

1шт.

11

KRJ12170

MANIFOLD VALVE

1шт.

12

KHJ1941

FITTING

1шт.

13

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

14

KNJ14840

BRACKET

1шт.

15

166352A1

BOLT

M12x 30mm

6шт.

16

KHJ28580

ELBOW

1шт.
