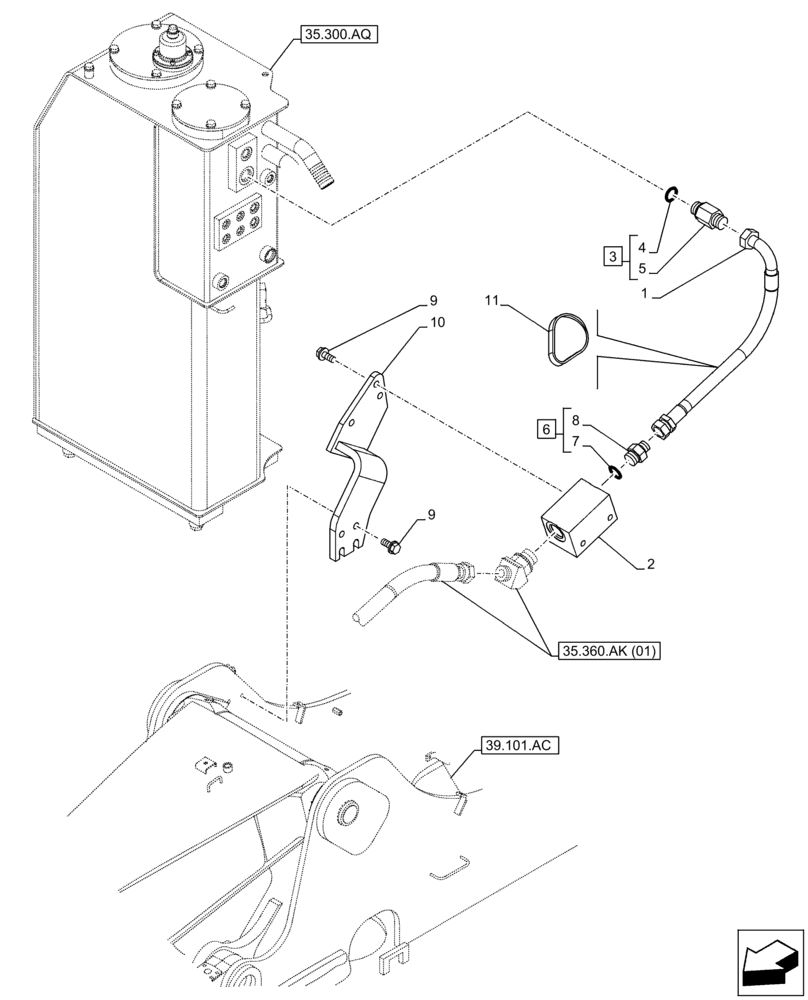

Запчасти Case CX130D (35.360.AB[01]) - VAR - 461561, 461865 - HAMMER CIRCUIT, LINES (35) - HYDRAULIC SYSTEMS

1

KRJ32660

HYDRAULIC HOSE

19mm ID x 620mm

1шт.

2

KRJ12170

MANIFOLD VALVE

1шт.

3

KAJ2917

ADAPTER

ASSY, Incl 4, 5

1шт.

4

150542A1

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

169040A1

ADAPTER

ASSY, G1" X G3/4", Incl 7, 8

1шт.

7

152211A1

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

9

166352A1

BOLT

M12 x 30mm

6шт.

10

KNJ14830

BRACKET

1шт.

11

150496A1

MOUNTING CLIP

250mm

1шт.
