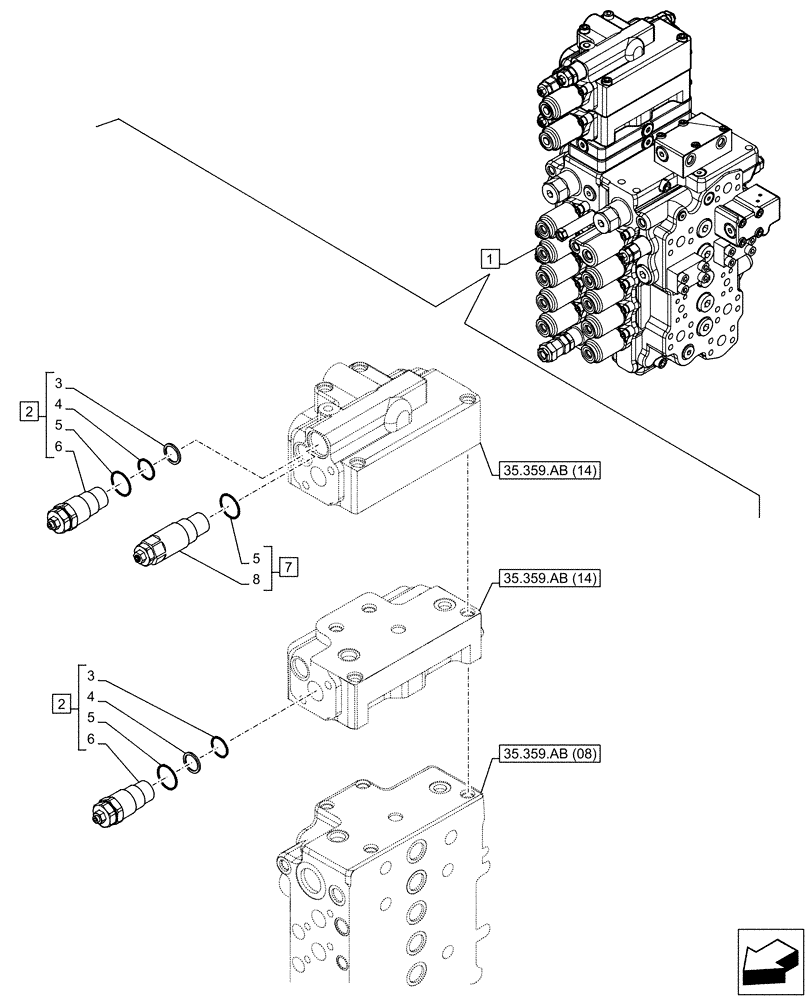

Запчасти Case CX130D (35.359.AY[07]) - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KNJ21960

CONTROL VALVE

ASSY, Incl 2 - 8

1шт.

See also Figure 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(13), 35.359.AB(14), 35.359.AY(06)

1шт.

2

LJ016760

VALVE PRESSURE RELIE

ASSY, Incl 3 - 6 (Qty 1)

4шт.

3

LE026610

RING

2шт.

4

LE026720

O-RING

2шт.

5

LE026690

O-RING

3шт.

6

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 2

2шт.

7

LJ022820

VALVE

ASSY, Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 7

1шт.
