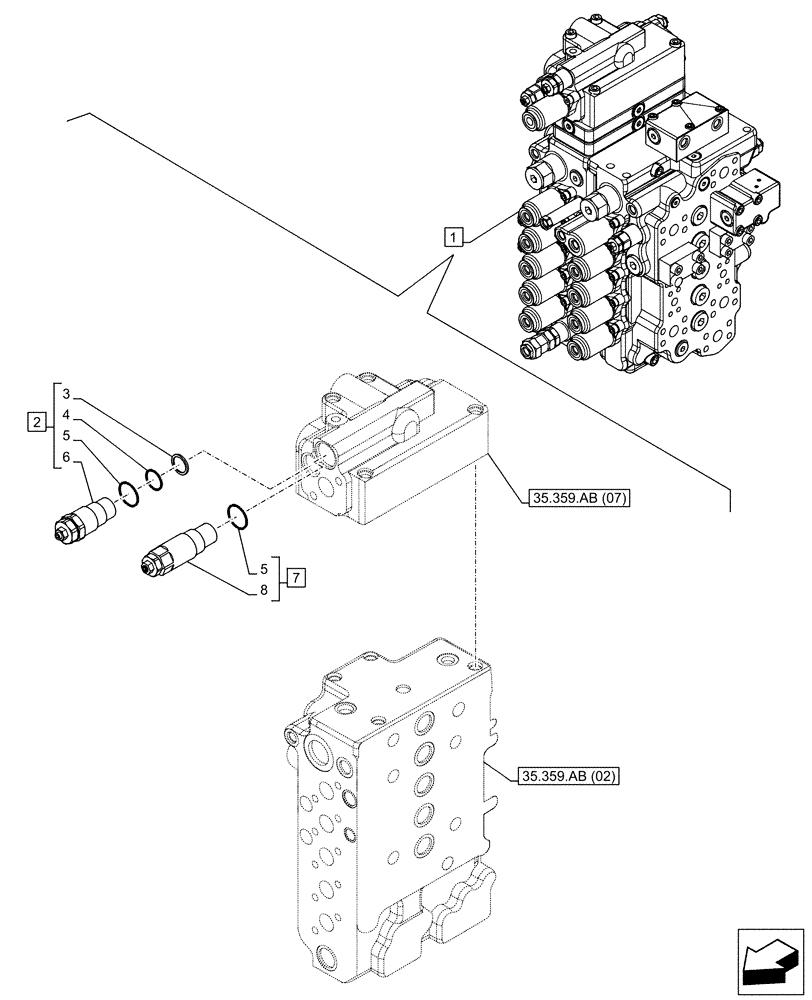

Запчасти Case CX130D (35.359.AY[05]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNJ21950

CONTROL VALVE

ASSY, Incl 2 - 8

1шт.

See als Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04), 35.359.AB(05), 35.359.AB(06), 35.359.AB(07), 35.359.AY(04)

1шт.

2

LJ016760

VALVE PRESSURE RELIE

ASSY, Incl 3 - 6 (Qty 2)

2шт.

3

LE026610

RING

2шт.

4

LE026720

O-RING

2шт.

5

LE026690

O-RING

3шт.

6

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 2

2шт.

7

LJ022820

VALVE

ASSY, Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 7

1шт.
