(35.359.AY[04]) - RELIEF VALVE, COMPONENTS

Запчасти Case CX130D (35.359.AY[04]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

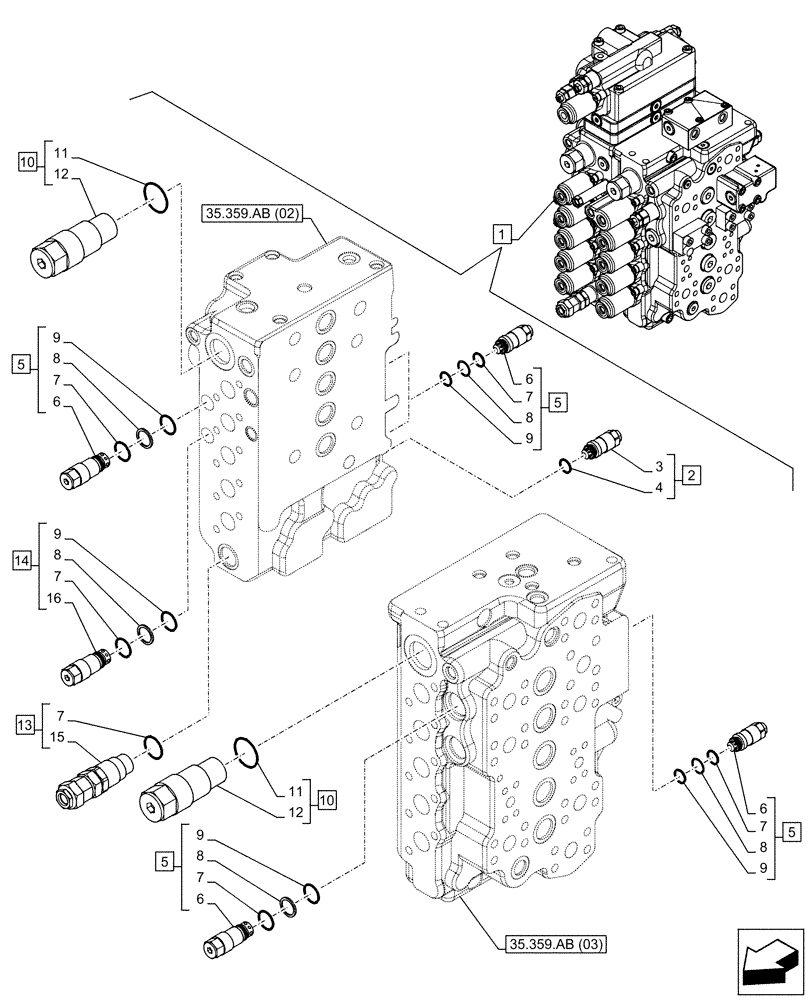

Схема запчастей Case CX130D - (35.359.AY[04]) - RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (03)
1
6
7
6
8
9
6
9
6
11
14
12
15
8
7
11
8
9
5
2
10
13
9
16
8
5
12
5
4
3
7
10
7
5
7
9
7
8
35.359.ab (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21950

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

See also Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04), 35.359.AB(05), 35.359.AB(06), 35.359.AB(07), 35.359.AY(05)

1шт.

2

LJ023140

VALVE

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

LE025890

O-RING

1шт.

5

LJ016730

VALVE PRESSURE RELIE

ASSY, Incl 6 - 9 (Qty 1)

5шт.

6

NSS

NOT SOLD SEPARAT

Valve, Incl in 5

5шт.

7

LE026690

O-RING

6шт.

8

LE026610

RING

5шт.

9

LE026720

O-RING

5шт.

10

LJ022980

VALVE

ASSY, Incl 11, 12

2шт.

11

LE026710

O-RING

2шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 10

2шт.

13

LJ00800

VALVE, PRESSURE RELI

ASSY, Incl 7 (Qty 1), 15

1шт.

14

LJ017180

VALVE PRESSURE RELIE

ASSY, Incl 7 - 9 (Qty 1), 16

1шт.

15

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

16

NSS

NOT SOLD SEPARAT

Valve, Incl in 14

1шт.
