(35.359.AB[13]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, COMPONENTS

Запчасти Case CX130D (35.359.AB[13]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, COMPONENTS (35) - HYDRAULIC SYSTEMS

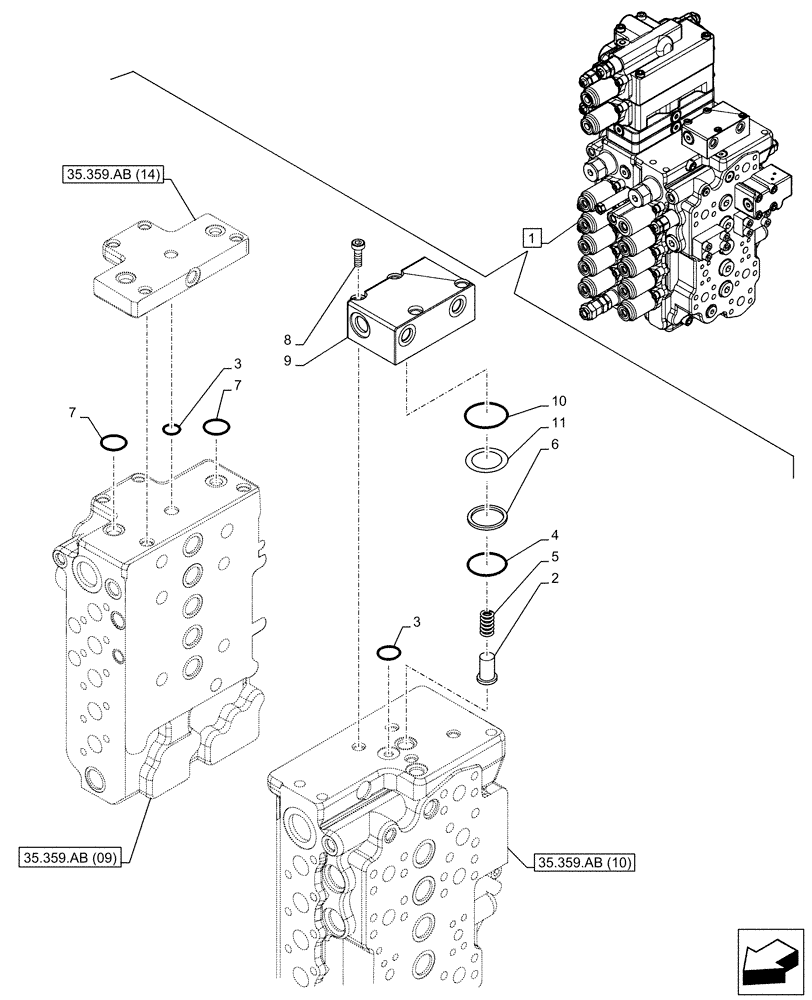

Схема запчастей Case CX130D - (35.359.AB[13]) - VAR - 461863 - CONTROL VALVE, CLAMSHELL BUCKET, ROTATION, COMPONENTS (35) - HYDRAULIC SYSTEMS
35.359.ab (14)
2
8
10
5
6
3
9
7
11
1
3
7
4
35.359.ab (10)
35.359.ab (09)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ21960

CONTROL VALVE

ASSY, Incl 2 - 11

1шт.

See also Figure 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(14), 35.359.AY(06), 35.359.AY(07)

1шт.

2

LPC0125

CHECK VALVE

1шт.

3

LE026670

O-RING

5шт.

4

LE026650

O-RING

1шт.

5

LSC0204

SPRING

1шт.

6

LE026590

RING

1шт.

7

LE026710

O-RING

2шт.

8

LA017300

BOLT

4шт.

9

LJ022990

MANIFOLD

1шт.

10

LE026680

O-RING

1шт.

11

LR00556

VALVE SEAT

1шт.
