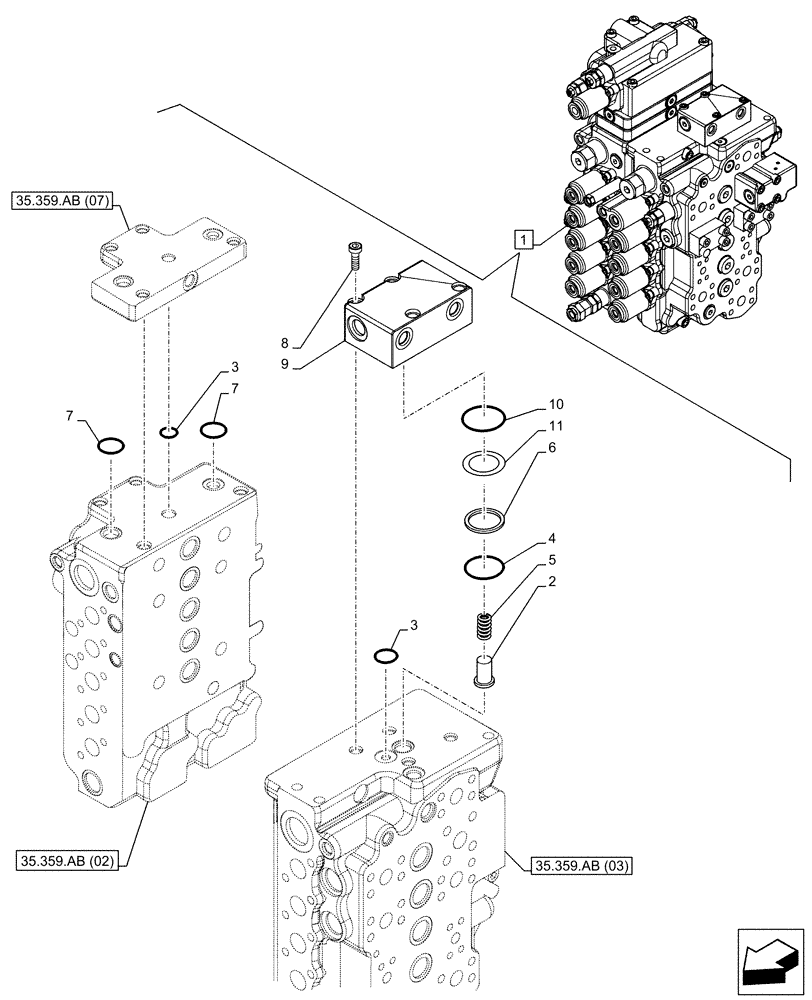

Запчасти Case CX130D (35.359.AB[06]) - CONTROL VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KNJ21950

CONTROL VALVE

ASSY, Incl 2 - 11

1шт.

See also Figure 35.359.AB(01), 35.359.AB(02), 35.359.AB(03), 35.359.AB(04), 35.359.AB(05), 35.359.AB(07), 35.359.AY(04), 35.359.AY(05)

1шт.

2

LPC0125

CHECK VALVE

1шт.

3

LE026670

O-RING

5шт.

4

LE026650

O-RING

1шт.

5

LSC0204

SPRING

1шт.

6

LE026590

RING

1шт.

7

LE026710

O-RING

2шт.

8

LA017300

BOLT

4шт.

9

LJ022990

MANIFOLD

1шт.

10

LE026680

O-RING

1шт.

11

LR00556

VALVE SEAT

1шт.
