/ / / / / / / / (35.357.AG[02]) - PILOT VALVE, SOLENOID, BLOCK
Запчасти Case CX130D (35.357.AG[02]) - PILOT VALVE, SOLENOID, BLOCK (35) - HYDRAULIC SYSTEMS

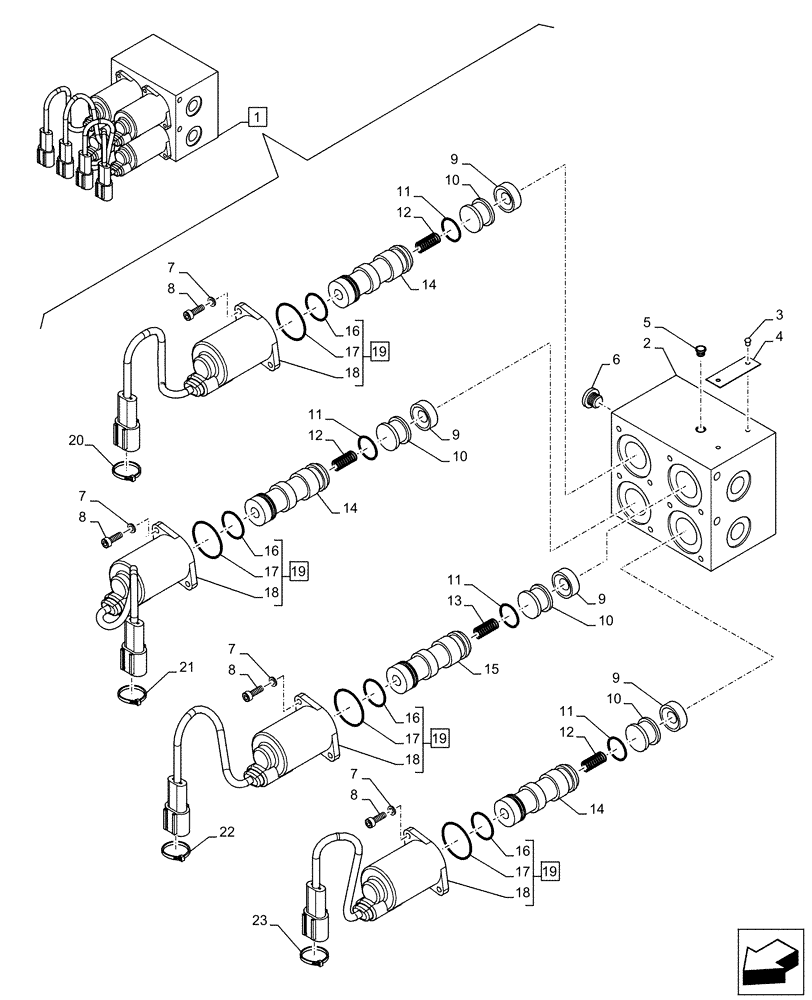

![Схема запчастей Case CX130D - (35.357.AG[02]) - PILOT VALVE, SOLENOID, BLOCK (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5368135.png)
18
14
12
8
3
15
16
12
4
12
7
21
9
19
14
18
8
2
19
8
17
11
16
19
17
16
10
18
7
9
6
17
10
1
7
22
5
18
13
7
11
20
19
16
9
9
11
10
10
23
11
14
17
8
1
KHJ15450
SOLENOID VALVE
ASSY, Incl 2 - 23
1шт.
2
NSS
NOT SOLD SEPARAT
Body, Incl in 1
1шт.
3
NSS
NOT SOLD SEPARAT
Rivet, Incl in 1
2шт.
4
NSS
NOT SOLD SEPARAT
Nameplate, Incl in 1
1шт.
5
LK005640
PLUG
4шт.
6
LK005630
PLUG
4шт.
7
LA010970
SPRING WASHER
8шт.
8
LA010980
BOLT,Hex Skt Hd
8шт.
9
LR015080
ADAPTER
4шт.
10
LA010960
SNAP RING
4шт.
11
154463A1
O-RING
4шт.
12
LG006010
COMPRESSION SPRING
3шт.
13
LG006020
COMPRESSION SPRING
1шт.
14
NSS
NOT SOLD SEPARAT
Spool, Incl in 1
3шт.
15
NSS
NOT SOLD SEPARAT
Spool, Incl in 1
1шт.
16
154487A1
O-RING
4шт.
17
155188A1
O-RING
4шт.
18
NSS
NOT SOLD SEPARAT
Solenoid, Incl in 19
4шт.
19
LL001140
SOLENOID
ASSY, Incl 16 - 18
4шт.
20
LD001470
COLLAR
1шт.
21
LD001450
COLLAR
1шт.
22
LD001480
COLLAR
1шт.
23
LD001490
COLLAR
1шт.
