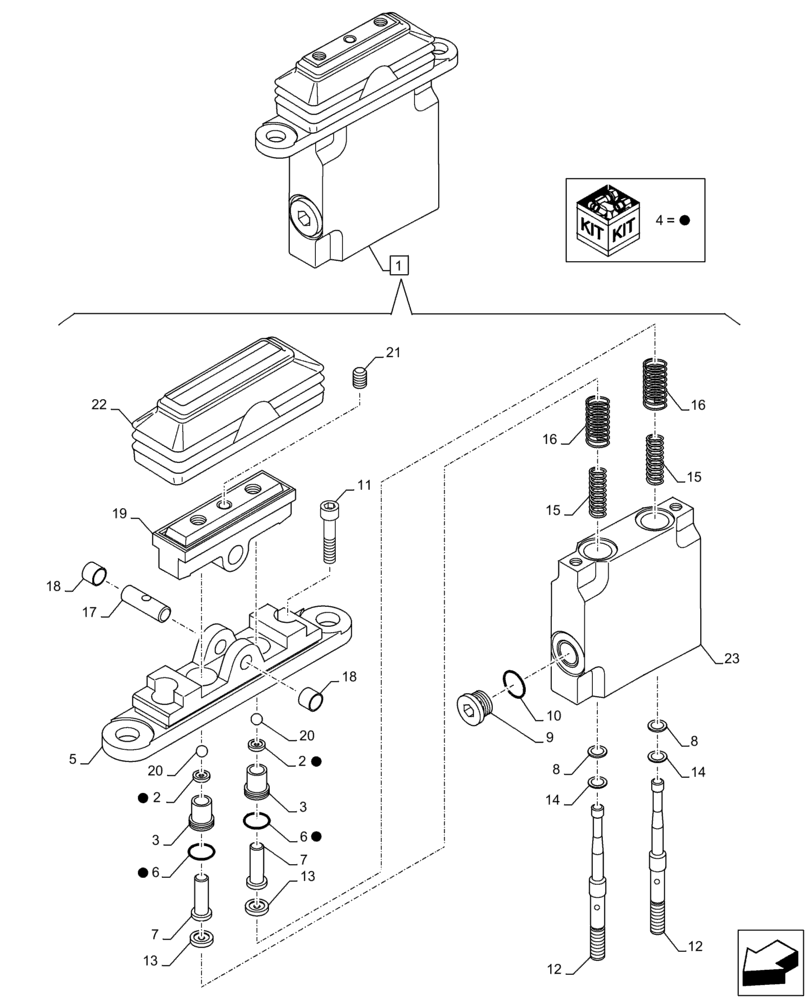

Запчасти Case CX130D (35.355.AK[08]) - VALVE, LEVER, BLADE, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KHJ1928

REMOTE CONTROL VALVE

ASSY, Incl 2 - 23

1шт.

2

LE00976

OIL SEAL

2шт.

3

LK00357

PLUG

2шт.

4

LZ00481

SEAL KIT

1шт.

5

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

6

156791A1

O-RING

2шт.

7

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

2шт.

8

LH00308

SHIM KIT

2шт.

9

LK00015

PLUG

1шт.

10

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

11

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

2шт.

12

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

2шт.

13

LR00812

SPRING SEAT

2шт.

14

LA00807

WASHER

2шт.

15

LG00408

COMPRESSION SPRING

2шт.

16

LG00409

COMPRESSION SPRING

2шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Bush, Incl in 1

2шт.

19

NSS

NOT SOLD SEPARAT

Cam, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

2шт.

21

LA00808

SET SCREW

1шт.

22

LQ00027

BELLOWS

1шт.

23

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.
