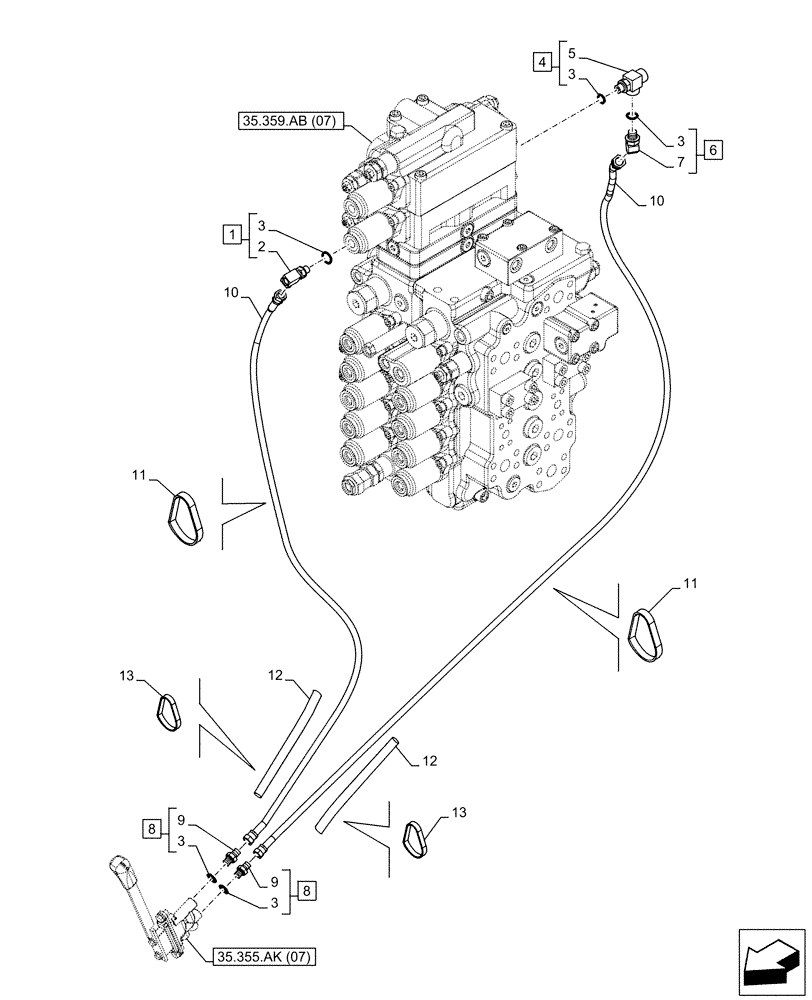

Запчасти Case CX130D (35.355.AC[09]) - HYDRAULIC LINE, CONTROL VALVE, BLADE (35) - HYDRAULIC SYSTEMS

1

KHJ2773

TEE

ASSY, G1/4", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

5шт.

4

KHJ12530

TEE

ASSY, G1/4", Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 4

1шт.

6

150933A1

ELBOW

ASSY, G1/4", Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 9, 3 (Qty 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

10

KHJ2077

HOSE

6mm ID x 2800mm

2шт.

11

150496A1

MOUNTING CLIP

1шт.

12

157430A1

TUBE

10mm ID x 600mm

2шт.

13

150498A1

MOUNTING CLIP

300mm

2шт.
