(35.353.AE[02]) - VAR - 481064 - TRAVEL MOTOR & REDUCTION GEAR, W/ SAFETY VALVE, LINES

Запчасти Case CX130D (35.353.AE[02]) - VAR - 481064 - TRAVEL MOTOR & REDUCTION GEAR, W/ SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS

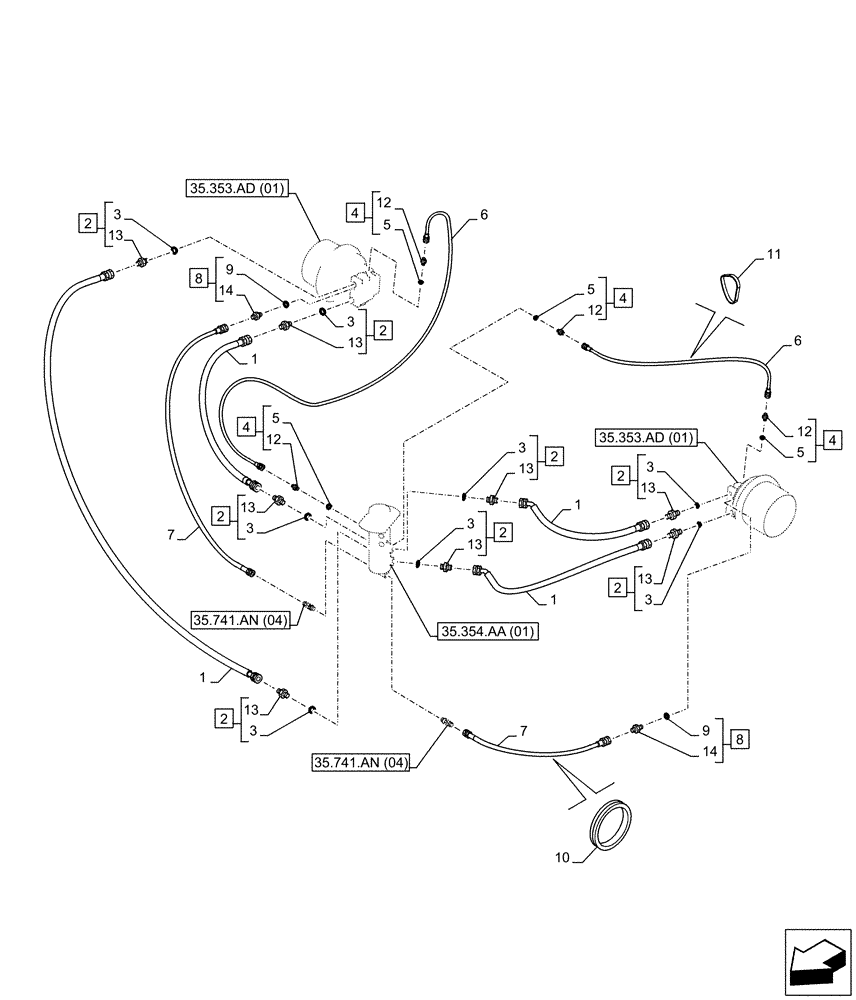

Схема запчастей Case CX130D - (35.353.AE[02]) - VAR - 481064 - TRAVEL MOTOR & REDUCTION GEAR, W/ SAFETY VALVE, LINES (35) - HYDRAULIC SYSTEMS
4
13
3
3
35.741.an (04)
2
10
3
8
13
2
2
1
35.354.aa (01)
3
6
1
13
1
3
12
13
35.741.an (04)
1
9
9
12
3
3
14
13
5
2
35.353.ad (01)
2
5
11
4
4
12
4
13
2
5
13
6
7
13
3
14
8
12
35.353.ad (01)
2
2
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160696A1

HYDRAULIC HOSE,19.00 mm ID x 1680.00 mm

4шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 3, 13

8шт.

3

150542A1

O-RING

8шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5, 12

4шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

6

152709A1

HOSE,6.4mm ID x 2100mm L

2100mm

2шт.

7

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

2шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 9, 14

2шт.

9

150539A1

O-RING

2шт.

10

150876A1

RUBBER BLOCK

2шт.

11

150071A1

MOUNTING CLIP

380mm

5шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

13

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

8шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

4шт.
