Запчасти Case CX130D (35.353.AB[02]) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

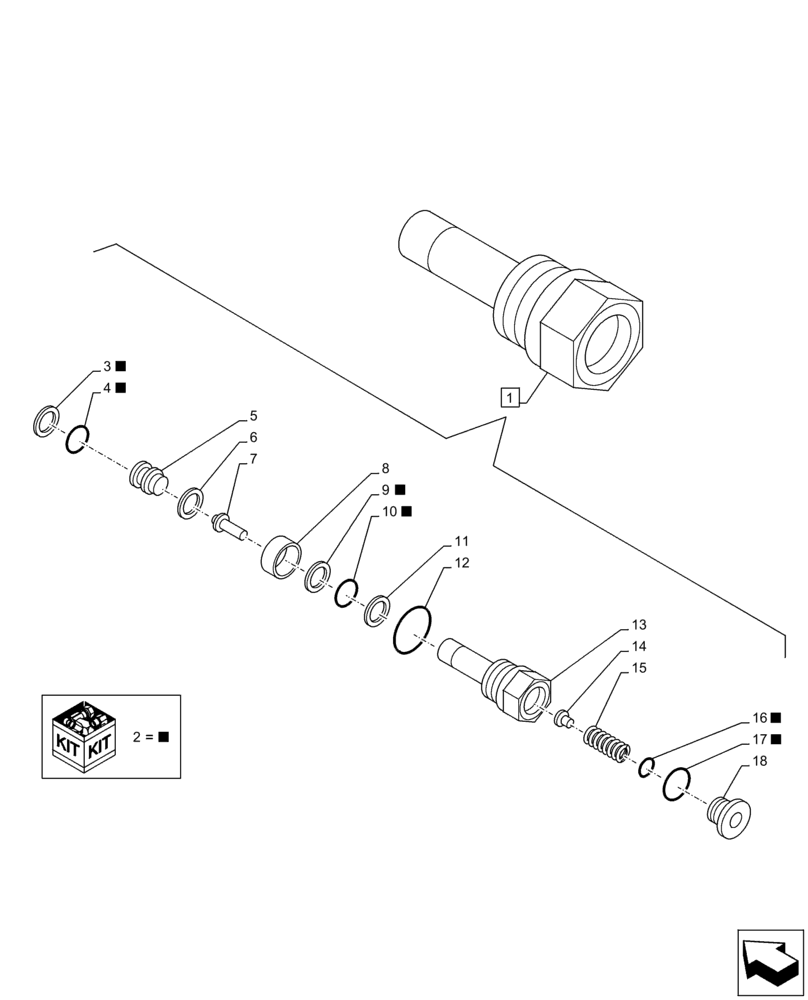

Схема запчастей Case CX130D - (35.353.AB[02]) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
14
6
8
7
17
2
2
16
1
13
2
10
15
3
9
11
4
12
2
2
5
2
2
2
18

Артикул

Название

Примечание

Количество

1

LJ023030

VALVE

ASSY, Incl 2 - 18

1шт.

See als Figure 35.353.AB(01), 35.353.AD(01), 35.353.AD(02), 35.353.AD(03), 35.353.AG(01), 35.353.AG(02)

1шт.

2

LE026550

SEAL

1шт.

See also Figure 35.353.AD(02), 35.353.AD(03), 35.353.AG(01)

1шт.

3

LE026450

RING

1шт.

4

LE026020

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Back-up ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Collar, Incl in 1

1шт.

9

LE026460

RING

1шт.

10

LE026420

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

Back-up ring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

16

LE026300

O-RING

1шт.

17

LE026430

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

Выбрано товаров: 20
