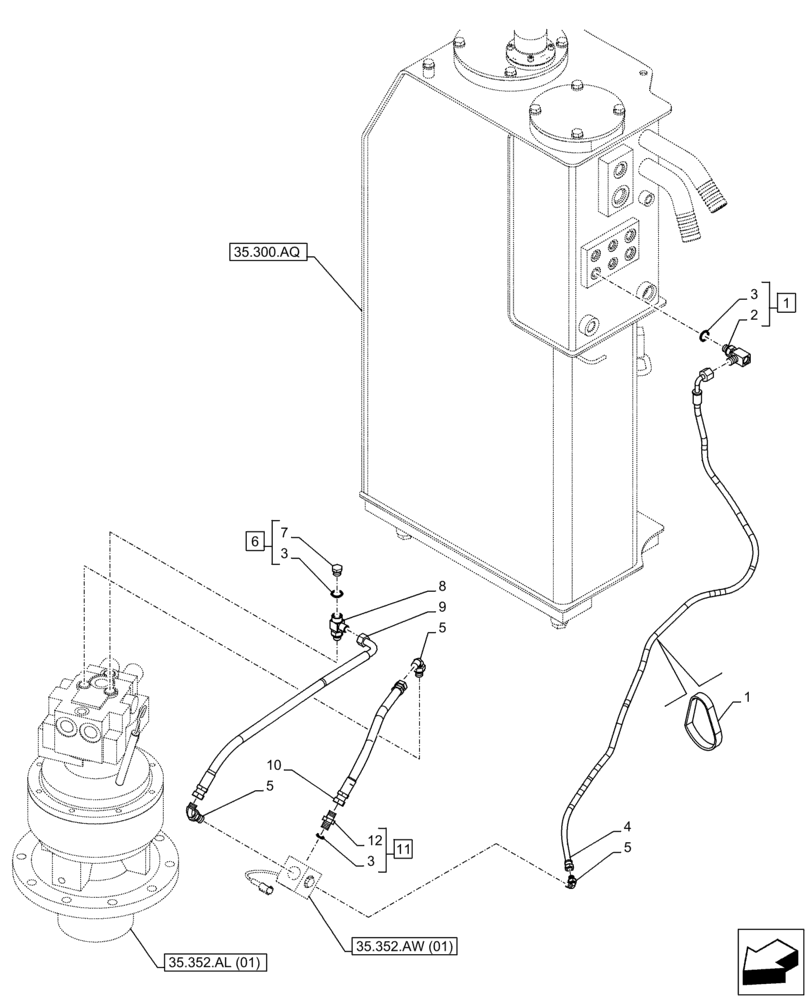

Запчасти Case CX130D (35.352.AI[03]) - VAR - 461568 - MOTO-REDUCTION GEAR, LINES, FREE SWING (35) - HYDRAULIC SYSTEMS

1

KHJ2773

TEE

ASSY, G1/4", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

KHJ2094

HOSE

6mm ID x 1250mm

1шт.

5

KHJ28580

ELBOW

3шт.

6

159002A1

PLUG

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

8

KHJ11640

ORIFICE

1шт.

9

KHJ16970

HOSE ASSY.

1шт.

10

KNJ20790

HYDRAULIC HOSE

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 12, 3 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.
