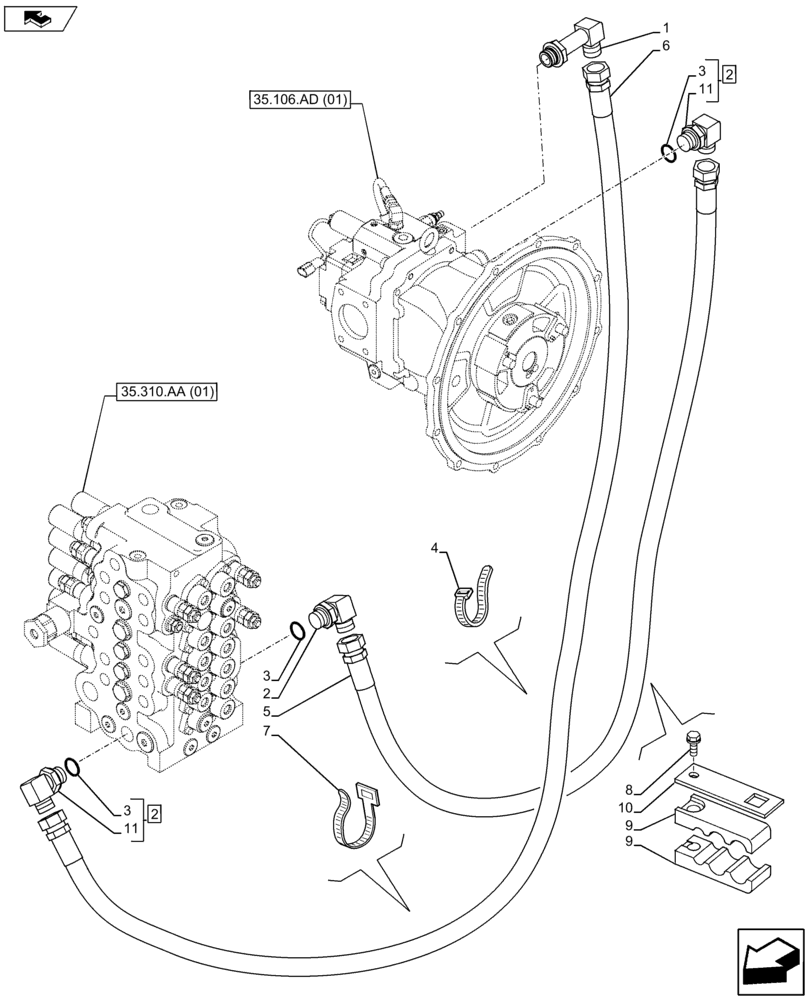

Запчасти Case CX80C (35.106.AO[03]) - PUMP OIL LINE (35) - HYDRAULIC SYSTEMS

1

KHJ22650

ELBOW

1шт.

2

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

Assy, Incl 3, 11

3шт.

3

154503A1

O-RING

1шт.

4

150496A1

MOUNTING CLIP

1шт.

5

KAJ14750

HYDRAULIC HOSE

1шт.

6

KAJ14760

HYDRAULIC HOSE

1шт.

7

KHJ2023

HOSE CLAMP

1шт.

8

166347A1

BOLT,Sems, M10 x 30mm

1шт.

9

KAJ14730

CLAMP

2шт.

10

KAJ14720

PLATE

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.
