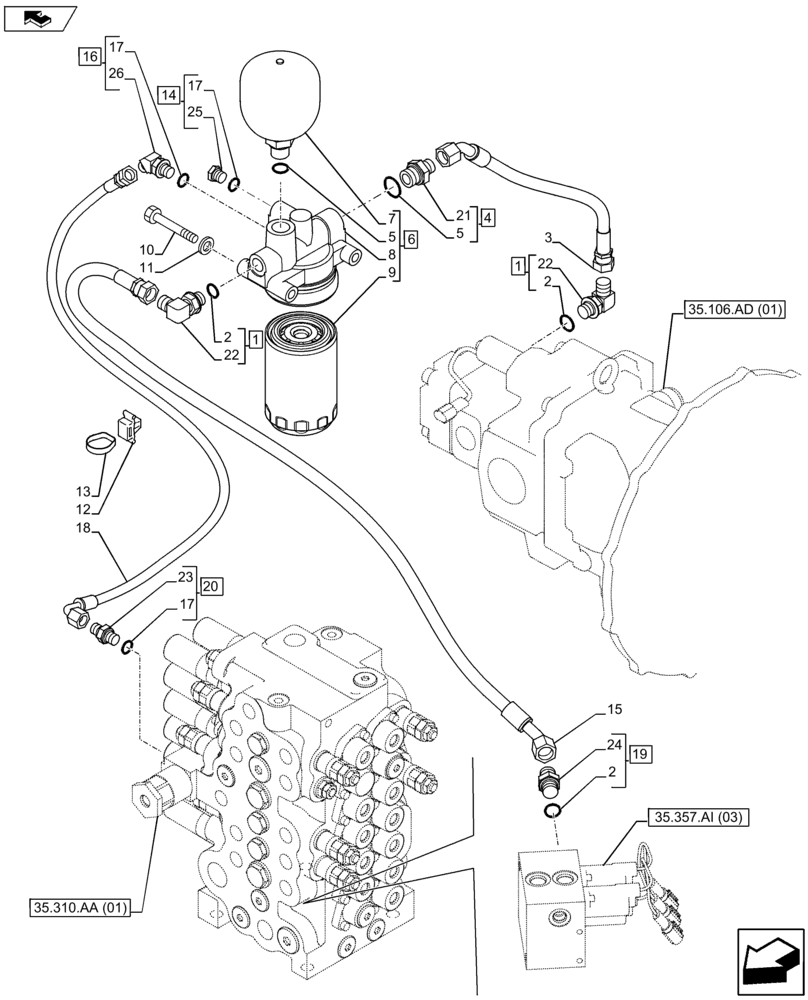

Запчасти Case CX80C (35.106.AO[02]) - PUMP OIL LINE (35) - HYDRAULIC SYSTEMS

1

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

2шт.

2

154475A1

O-RING

3шт.

3

KHJ28000

HOSE

1шт.

4

161084A1

ADAPTER

Assy, Incl 5, 21

1шт.

5

154487A1

O-RING

1шт.

6

KHJ17711

ACCUMULATOR

1шт.

7

KHJ27610

ACCUMULATOR

1шт.

8

KHJ17720

FILTER HEAD

1шт.

9

KHJ17730

HYDRAULIC OIL FILTER

1шт.

10

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

11

150409A1

WASHER

2шт.

12

KHR10220

MOUNTING CLIP

3шт.

13

150496A1

MOUNTING CLIP

3шт.

14

159002A1

PLUG

Assy, Incl 7, 25

1шт.

15

KHJ28040

HOSE

1шт.

16

150933A1

ELBOW

Assy, Incl 17, 26

1шт.

17

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

18

KHJ2092

HOSE

1шт.

19

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

Assy, Incl 2, 24

1шт.

20

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 17, 23

1шт.

21

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

1шт.

22

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Hyd Connector, Incl in 20

1шт.

24

NSS

NOT SOLD SEPARAT

Hyd Connector, Incl in 19

1шт.

25

NSS

NOT SOLD SEPARAT

Plug, Incl in 14

1шт.

26

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.
