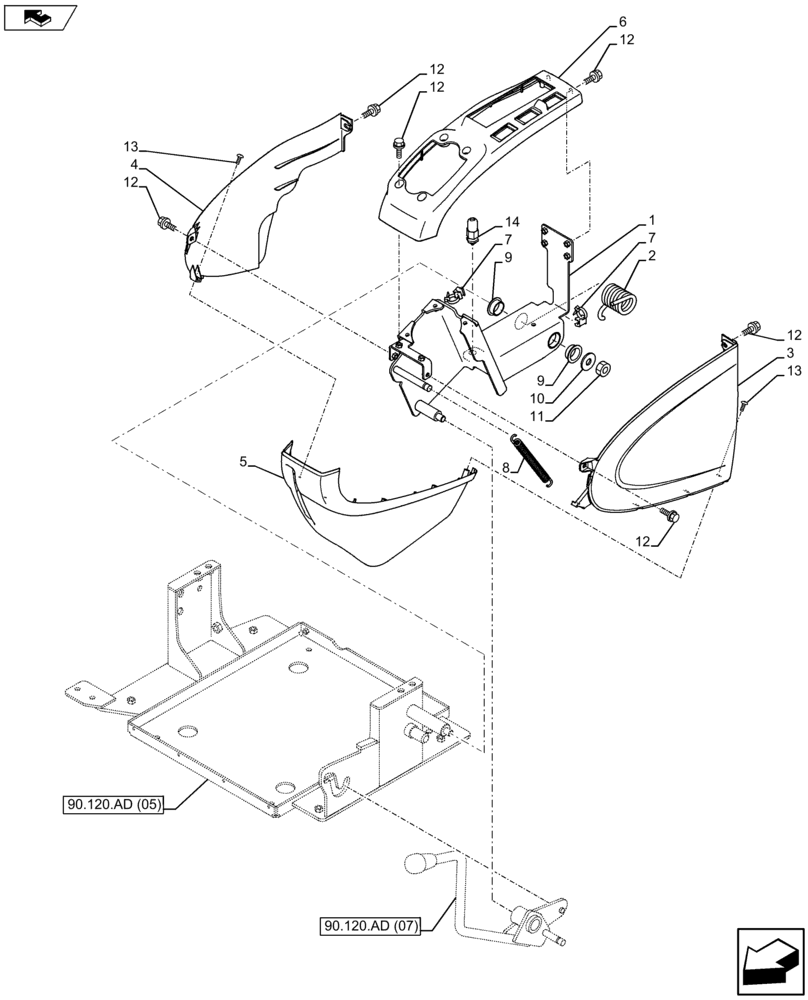

Запчасти Case CX80C (90.160.BY[04]) - VAR - 781768 - SIDE CONSOLE ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN32240

FRAME

Lh

1шт.

2

KHN32270

TORSION SPRING

1шт.

3

KHN32530

COVER

1шт.

4

KHN32540

COVER

1шт.

5

KHN32550

COVER

1шт.

6

KHN32510

COVER

1шт.

7

KHN17050

CLIP

1шт.

8

KHN32260

TENSION SPRING

1шт.

9

KHN2261

BUSHING

2шт.

10

151161A1

WASHER

1шт.

11

829-1412

NUT,M12, Cl 10.9

1шт.

12

KHN2132

BOLT,Hex Flg Hd, M6 x 16

8шт.

13

KHR2737

SELF-TAP SCREW

5шт.

14

KHR14930

LIMIT SWITCH

1шт.
