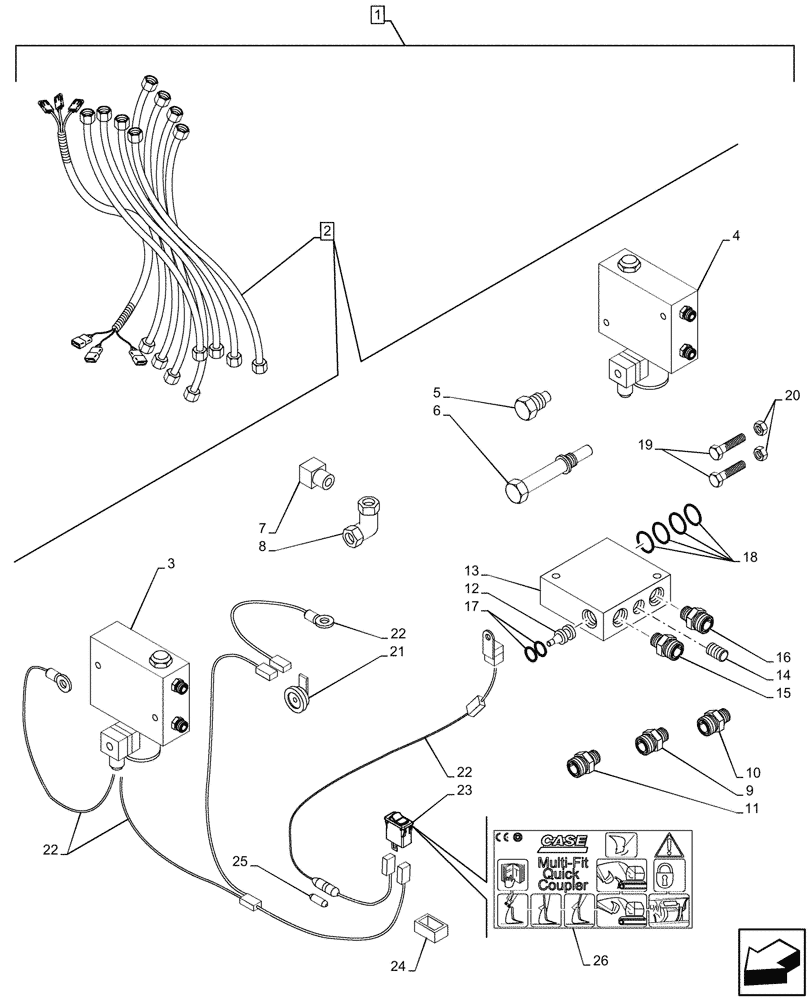

Запчасти Case CX80C (84.100.317) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT (84) - BOOMS, DIPPERS & BUCKETS

1

47603261

QUICK MALE COUPLING

Kit, ASSY, Incl 2 - 26

1шт.

See also Quick Male Coupling in Figure 84.100.288, 84.100.316

1шт.

2

NS

NOT SERVICED

ASSY, Incl 3 - 26

1шт.

See also Kit Attachment in Figure 84.100.316

1шт.

3

378262A1

VALVE

1шт.

4

F5343342

SOLENOID VALVE

1шт.

5

G5343343

DISTRIBUTOR

1шт.

6

H5343344

ELECTROMAGNET

1шт.

7

V3041171

COIL

1шт.

8

E3330496

GASKET

1шт.

9

F5137584

FITTING

1шт.

10

H5137586

FITTING

1шт.

11

G3330498

GASKET

1шт.

12

433593A1

PISTON

1шт.

13

433596A1

MANIFOLD

1шт.

14

433598A1

CONNECTOR, ELEC

1шт.

15

433599A1

UNION

1шт.

16

433600A1

UNION

1шт.

17

433601A1

SEAL KIT

1шт.

18

433602A1

SEAL KIT

1шт.

19

D433829

SCREW

2шт.

20

F234513

SAFETY NUT

2шт.

21

378255A1

BUZZER

1шт.

22

84518712

WIRE HARNESS

1шт.

23

84515900

COMMUTATOR

1шт.

24

84518713

WIRE HARNESS

1шт.

25

84515330

FUSE

1шт.

26

418688A1

DECAL

1шт.
