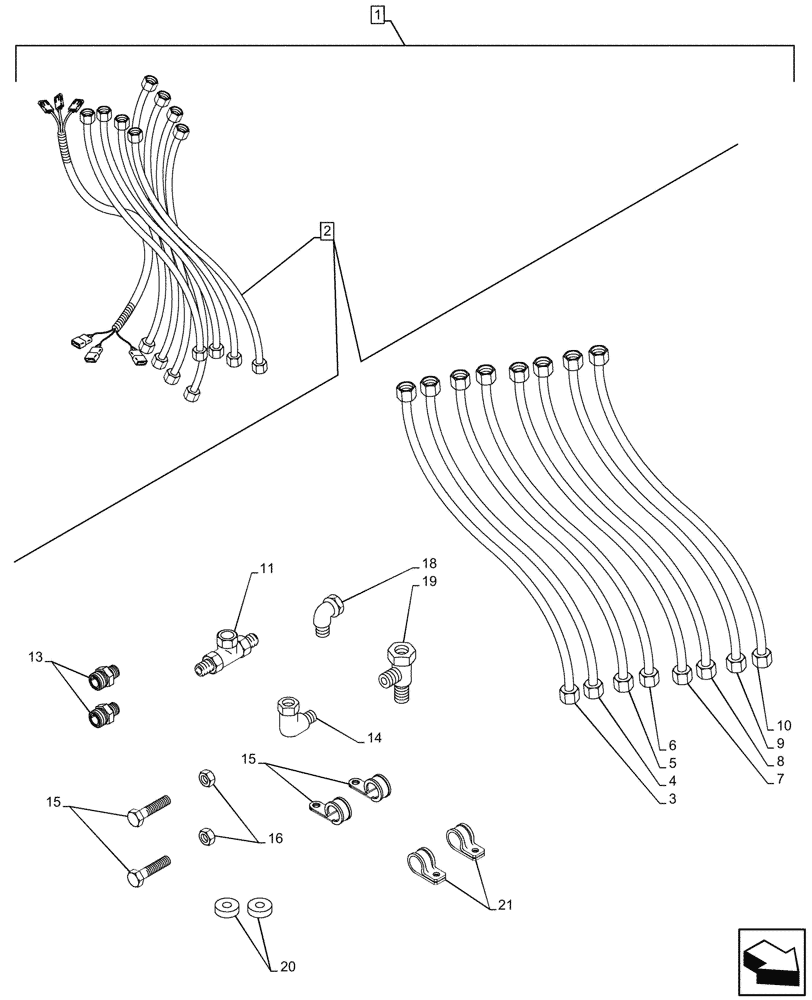

Запчасти Case CX80C (84.100.316) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT (84) - BOOMS, DIPPERS & BUCKETS

1

47603261

QUICK MALE COUPLING

Kit, ASSY, Incl 2 - 22

1шт.

See also Quick Male Coupling in Figure 84.100.288, 84.100.317

1шт.

2

NS

NOT SERVICED

Kit, Hydraulic, ASSY, Incl 3 - 22

1шт.

See also Kit Attachment in Figure 84.100.317

1шт.

3

394482A1

HOSE

2000mm

1шт.

4

394460A1

HOSE

610mm

1шт.

5

413724A1

HOSE

5000mm

1шт.

6

413037A1

HOSE

1520mm

1шт.

7

394464A1

HOSE

3300mm

1шт.

8

413726A1

HOSE

5000mm

1шт.

9

87413660

HYDRAULIC HOSE,1520.00 mm

1520mm

1шт.

10

394462A1

HOSE

3300mm

1шт.

11

369622A1

TEE

1шт.

12

D5137582

FITTING

2шт.

13

E5137583

FITTING

2шт.

14

369624A1

FITTING

1шт.

15

87413662

CLAMP

2шт.

16

N33822

SCREW

2шт.

17

P0034113E

NUT

2шт.

18

394412A1

FITTING

1шт.

19

369627A1

TEE

1шт.

20

87413663

GROMMET

2шт.

21

87413664

CLAMP

4шт.

22

47572268

HYD CONNECTOR

1шт.
