(84.100.287) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT, EU MODELS

Запчасти Case CX80C (84.100.287) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT, EU MODELS (84) - BOOMS, DIPPERS & BUCKETS

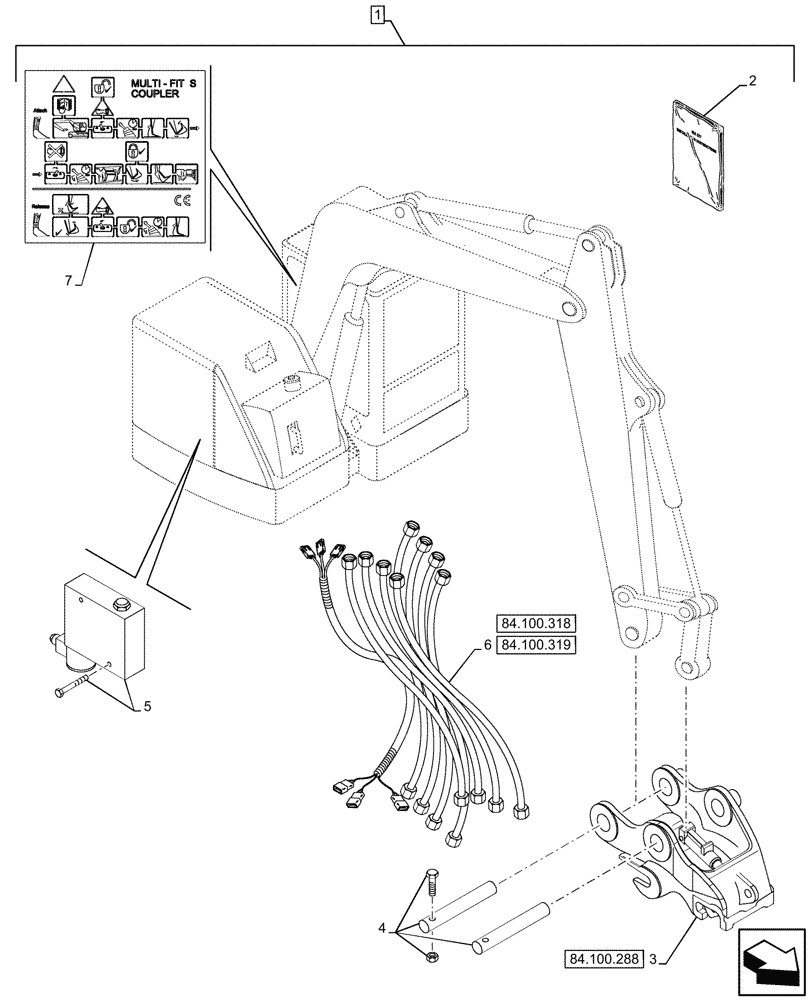

Схема запчастей Case CX80C - (84.100.287) - HYDRAULIC QUICK COUPLER MULTI-FIT S KIT, EU MODELS (84) - BOOMS, DIPPERS & BUCKETS
84.100.318
84.100.319
3
1
7
6
2
4
84.100.288
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47603261

QUICK MALE COUPLING

Kit, ASSY, Incl 2 - 7

1шт.

2

47604713

OPERATOR MANUAL

Guide Installation

1шт.

3

47603352

QUICK MALE COUPLING

ASSY

1шт.

4

ZKDPCX753

KIT

Bucket Pin

1шт.

5

87425846

SOLENOID VALVE

24V

1шт.

6

NS

NOT SERVICED

Kit, Attachment, ASSY

1шт.

7

47508618

DECAL

Cab

1шт.

Выбрано товаров: 7
