(84.100.010) - BUCKET (L=1000MM), EU MODELS

Запчасти Case CX80C (84.100.010) - BUCKET (L=1000MM), EU MODELS (84) - BOOMS, DIPPERS & BUCKETS

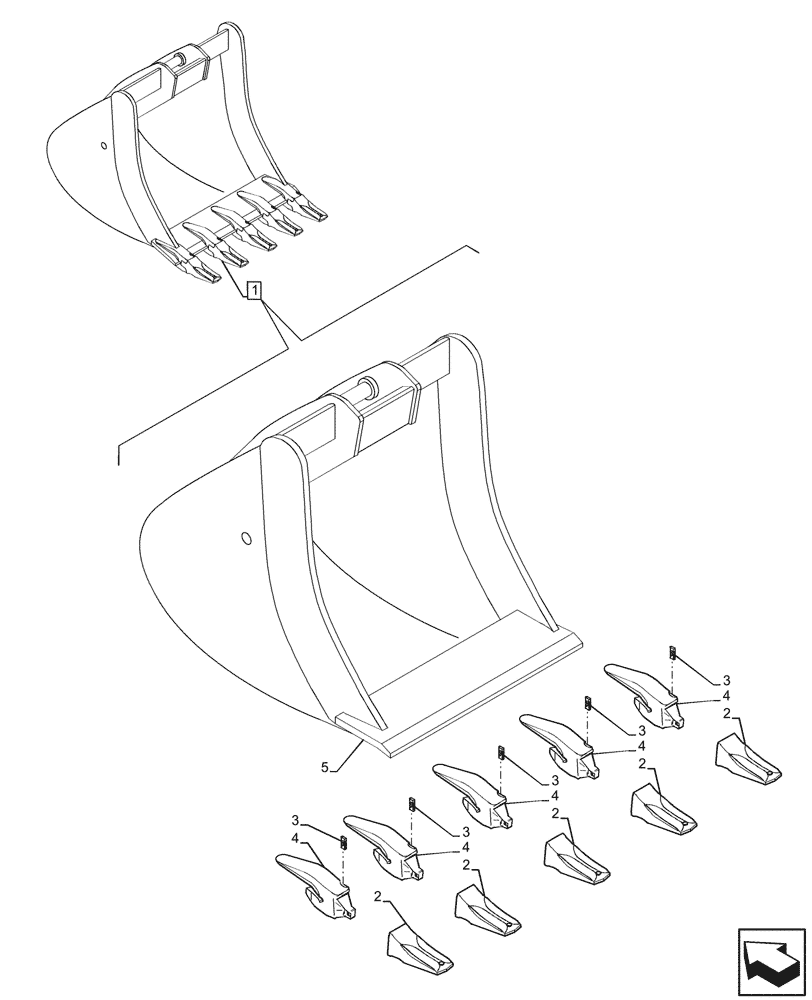

Схема запчастей Case CX80C - (84.100.010) - BUCKET (L=1000MM), EU MODELS (84) - BOOMS, DIPPERS & BUCKETS
3
2
5
3
2
2
4
3
4
4
3
2
2
4
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47818303

BUCKET

1000mm, ASSY, Incl 2 - 6

1шт.

for Quick Coupler

1шт.

2

84216218

BUCKET TOOTH

5шт.

3

84168132

BUCKET TOOTH KEY

5шт.

4

84335008

BUCKET TOOTH SHANK

5шт.

5

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Side Cutter, Incl in 1

2шт.
