(84.100.004) - BUCKET (L=400MM), EU MODELS

Запчасти Case CX80C (84.100.004) - BUCKET (L=400MM), EU MODELS (84) - BOOMS, DIPPERS & BUCKETS

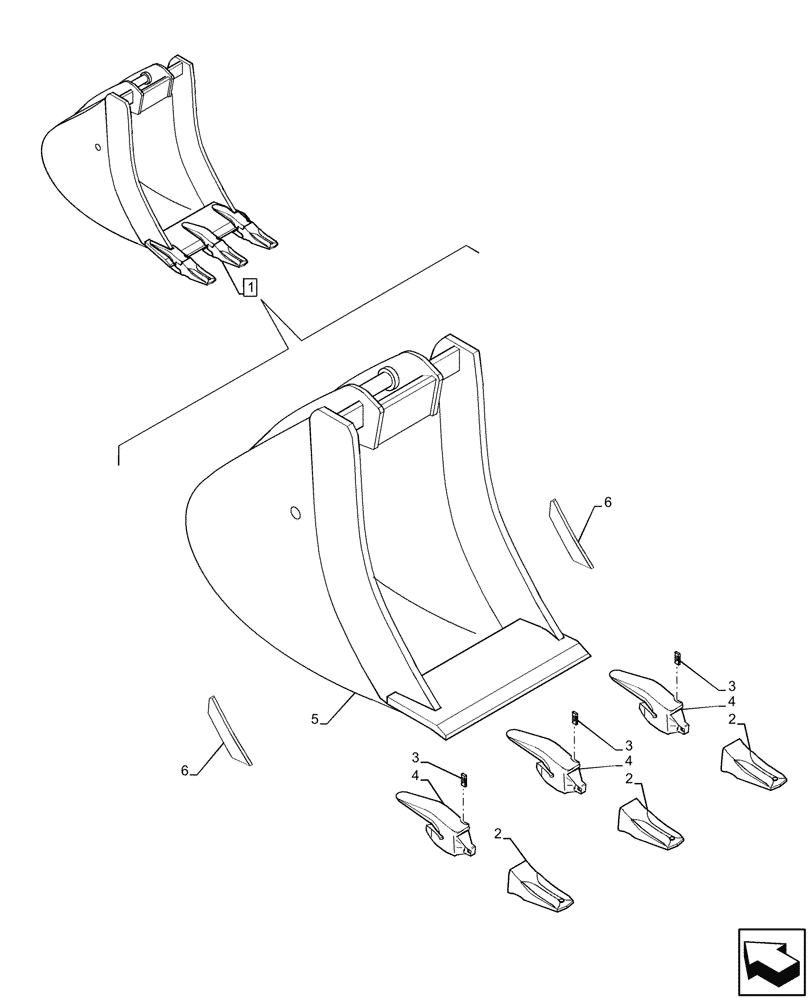

Схема запчастей Case CX80C - (84.100.004) - BUCKET (L=400MM), EU MODELS (84) - BOOMS, DIPPERS & BUCKETS
3
4
5
2
4
2
6
6
2
4
3
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84355142

BUCKET

400mm, ASSY, Incl 2 - 6

1шт.

for Quick Coupler

1шт.

2

84216218

BUCKET TOOTH

3шт.

3

84168132

BUCKET TOOTH KEY

3шт.

4

84335008

BUCKET TOOTH SHANK

3шт.

5

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Side Cutter, Incl in 1

2шт.
