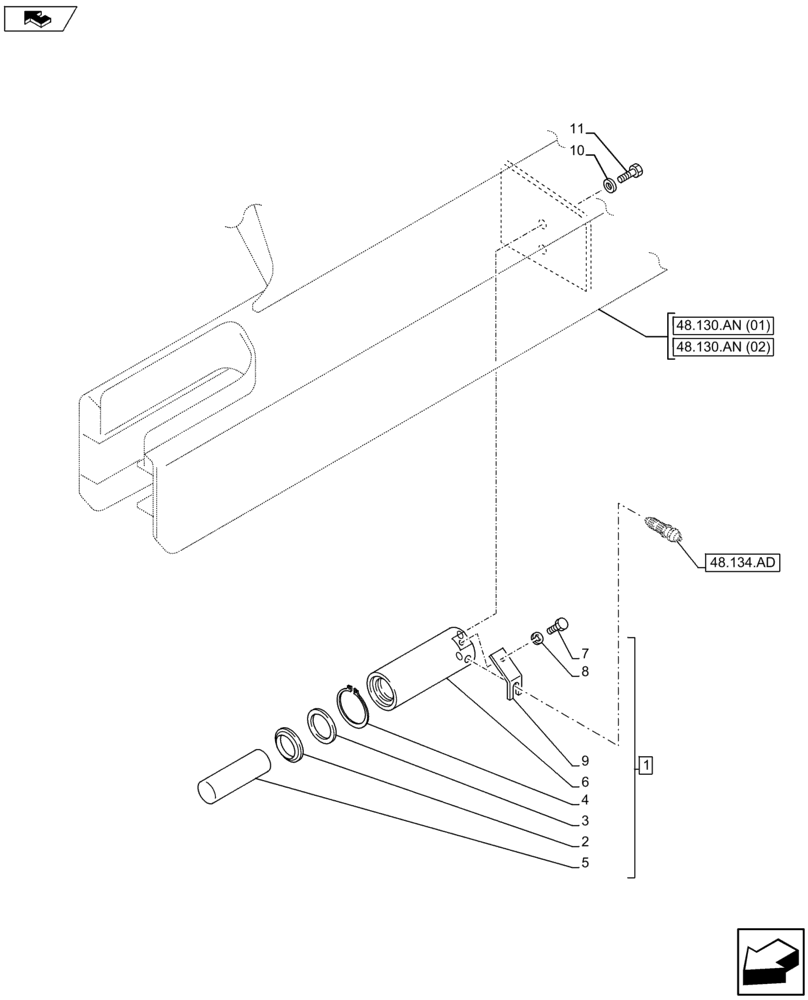

Запчасти Case CX80C (48.120.AB) - CHAIN TENSIONER (48) - TRACKS & TRACK SUSPENSION

1

KAA10790

CYLINDER ASSY.

Assy, Incl 2 - 10

1шт.

2

166236A1

SEAL

1шт.

3

KAA10800

GASKET

1шт.

4

800-1145

SNAP RING,M45, Ext

1шт.

5

KAA10810

PISTON ROD

1шт.

6

KAA10820

HYD CYL SLEEVE

1шт.

7

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

8

183-108VR

SPRING WASHER

1шт.

9

KAA1222

BRACKET

1шт.

10

150811A1

WASHER

1шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

1шт.
