(35.738.AE[03]) - VAR - 481265 - BUCKET CYLINDER LINE

Запчасти Case CX80C (35.738.AE[03]) - VAR - 481265 - BUCKET CYLINDER LINE (35) - HYDRAULIC SYSTEMS

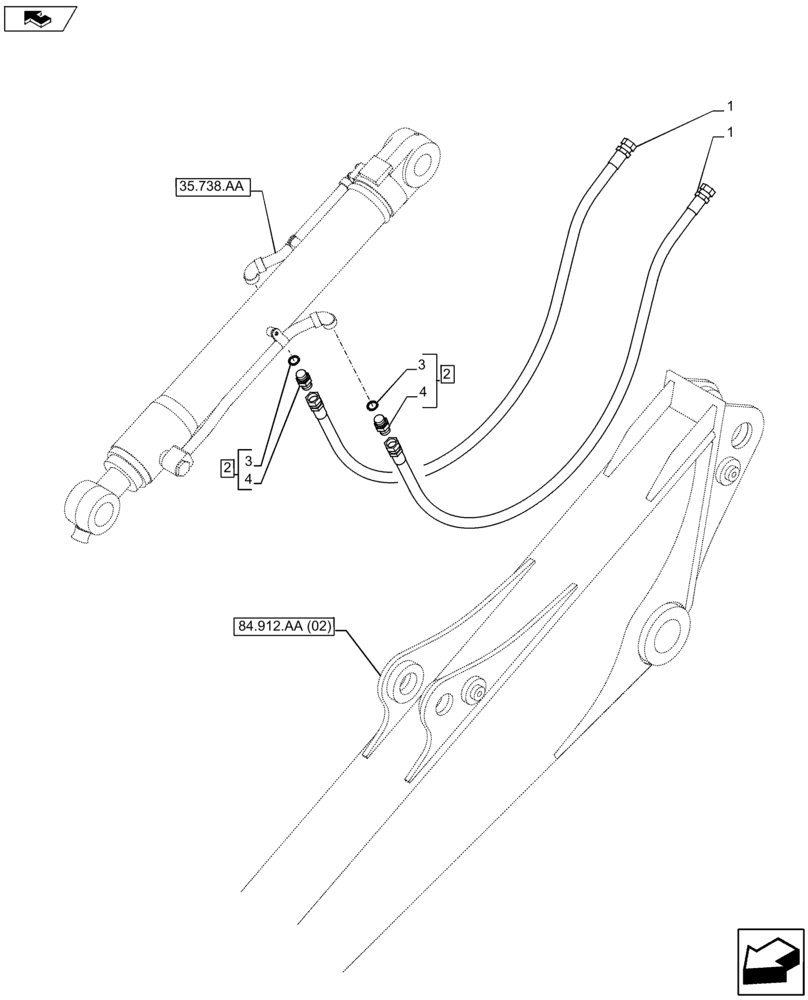

Схема запчастей Case CX80C - (35.738.AE[03]) - VAR - 481265 - BUCKET CYLINDER LINE (35) - HYDRAULIC SYSTEMS
2
4
3
4
3
35.738.aa
84.912.aa (02)
1
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRV15940

HYDRAULIC HOSE

2шт.

2

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Assy, Incl 3 - 4

2шт.

3

154487A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Hyd Connector, Incl in 2

2шт.
