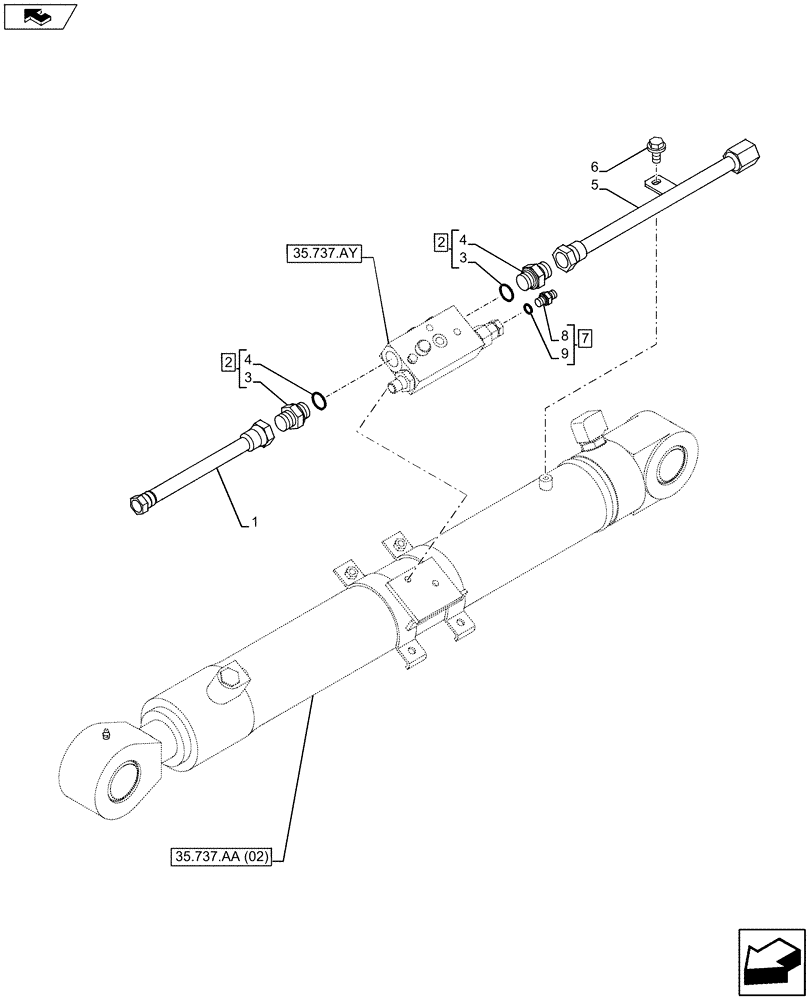

Запчасти Case CX80C (35.737.BC[02]) - VAR - 481064 - ARM CYLINDER HOLDING VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KAV18860

HYD TUBE

1шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

2шт.

4

154503A1

O-RING

2шт.

5

KAV18880

HYD TUBE

1шт.

6

166350A1

BOLT

1шт.

7

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
