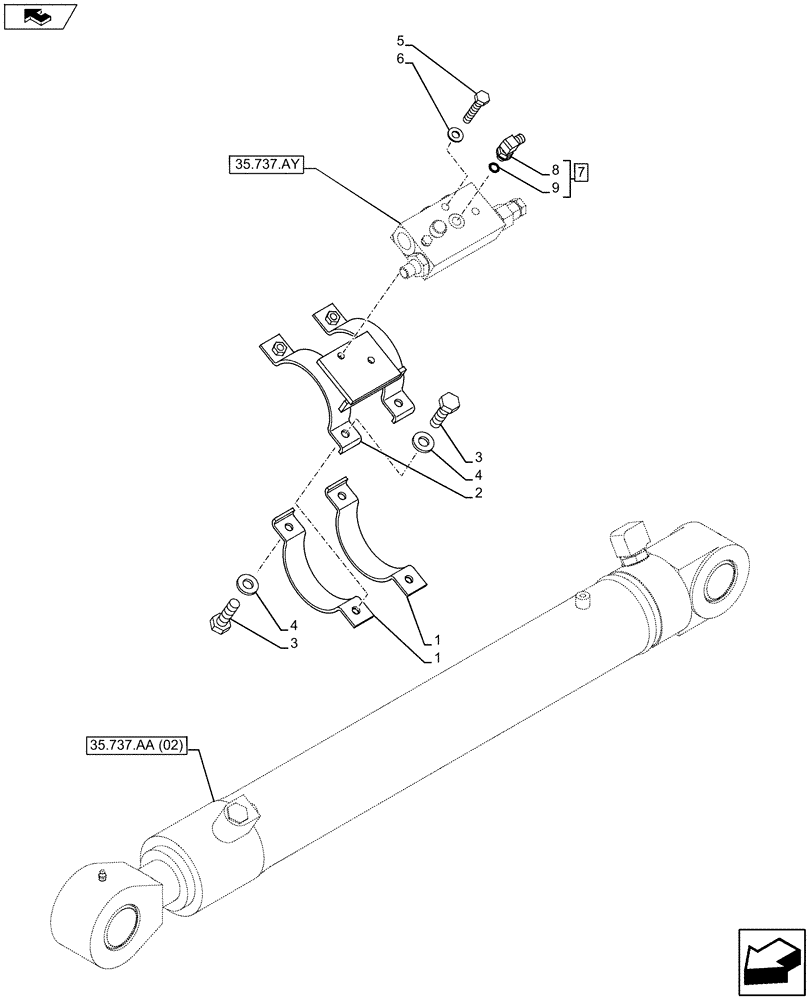

Запчасти Case CX80C (35.737.BC[01]) - VAR - 481064 - ARM CYLINDER HOLDING VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KAV18820

CLAMP

2шт.

2

KAV18830

CLAMP

1шт.

3

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

4

150409A1

WASHER

4шт.

5

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

, Start Serial:

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 8 - 9

1шт.

8

NSS

NOT SOLD SEPARAT

Elbow, Incl in 7

1шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
