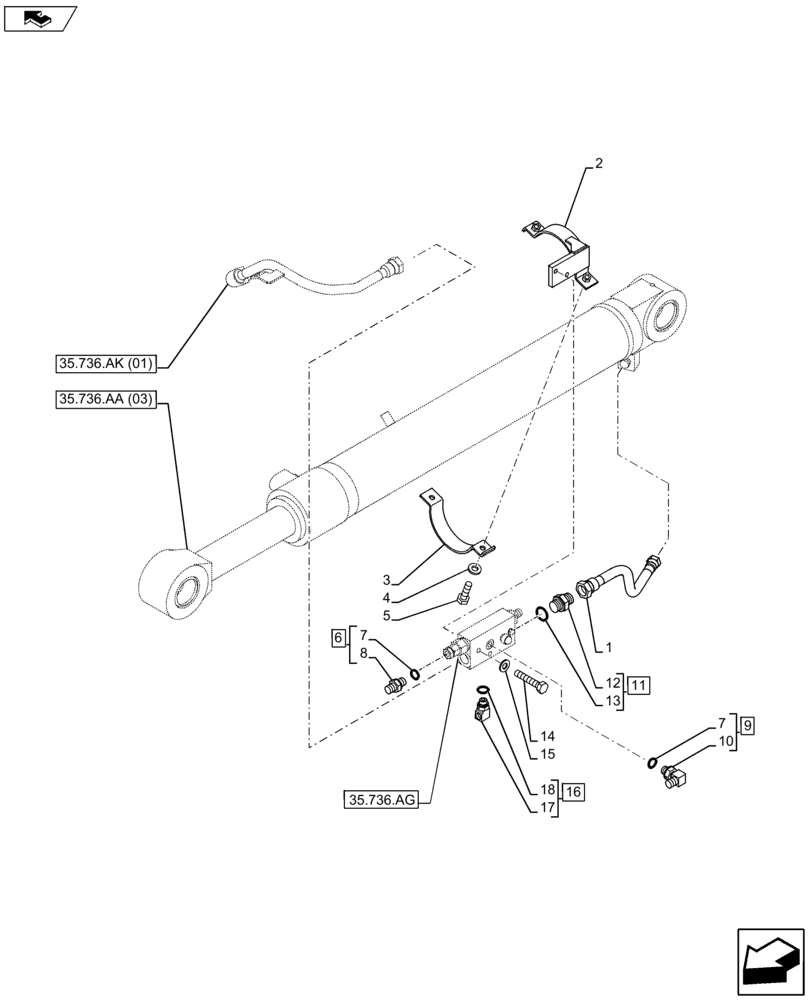

Запчасти Case CX80C (35.736.AK[02]) - VAR - 481064 - BOOM CYLINDER HOLDING VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KAV18580

HYD TUBE

1шт.

2

KAV14310

CLAMP

1шт.

3

KAV14290

CLAMP

1шт.

4

150409A1

WASHER

2шт.

5

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 7 - 8

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 7, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

1шт.

11

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

154503A1

O-RING

1шт.

14

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

2шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

16

166573A1

ELBOW

Assy, Incl 17 - 18

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.
