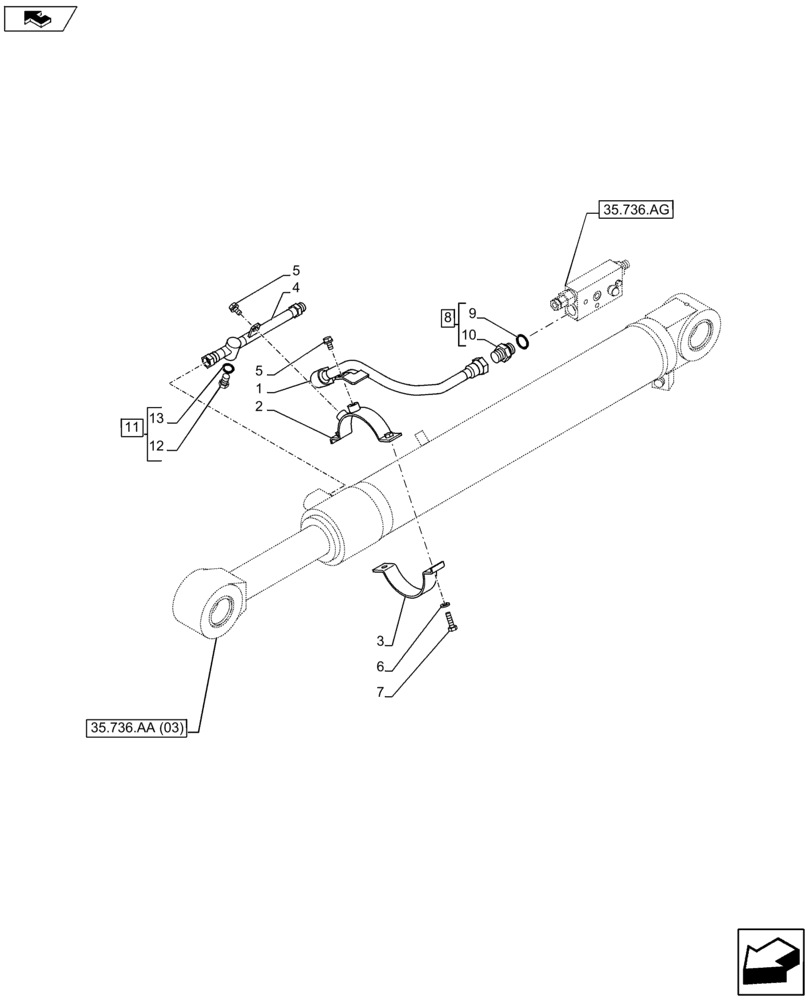

Запчасти Case CX80C (35.736.AK[01]) - VAR - 481064 - BOOM CYLINDER HOLDING VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KAV14330

HYD TUBE

1шт.

2

KAV14300

CLAMP

1шт.

3

KAV14290

CLAMP

1шт.

4

KAV14340

HYD TUBE

1шт.

5

166351A1

BOLT,Sems, M10 x 20mm

2шт.

6

150409A1

WASHER

2шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

8

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Assy, Incl 9 - 10

1шт.

9

154503A1

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

11

153105A1

PLUG

Assy, Incl 12 - 13

1шт.

12

NSS

NOT SOLD SEPARAT

Plug, Incl in 11

1шт.

13

154475A1

O-RING

1шт.
