(35.357.AK[02]) - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK

Запчасти Case CX80C (35.357.AK[02]) - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

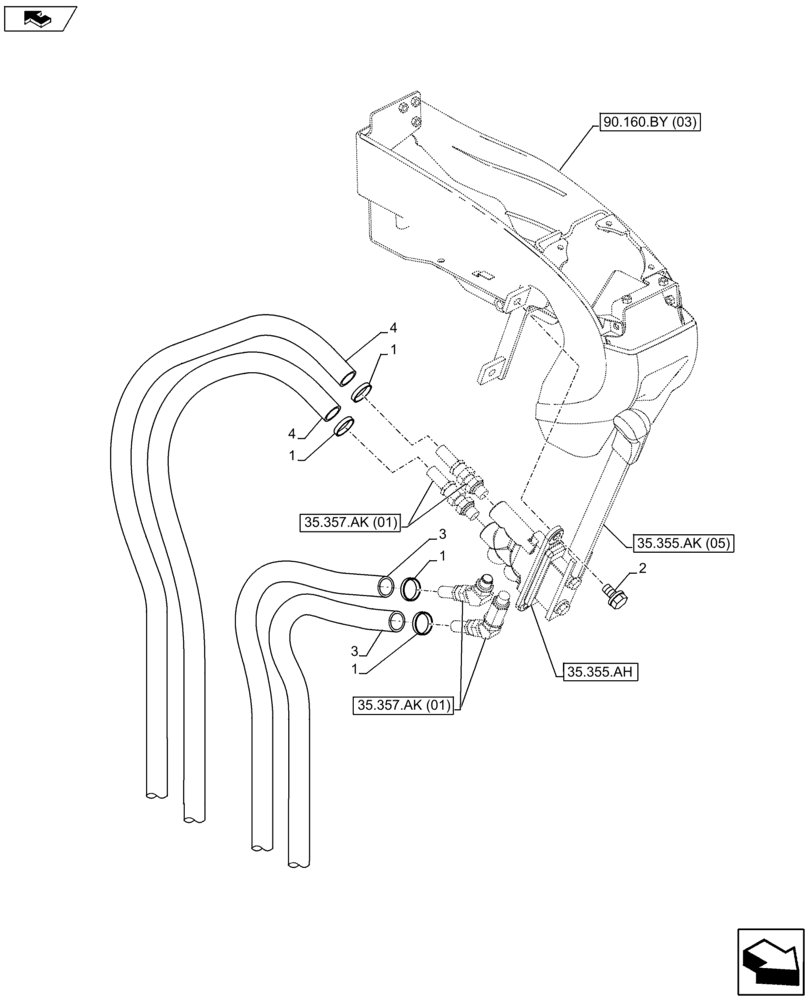

Схема запчастей Case CX80C - (35.357.AK[02]) - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS
4
4
35.355.ah
1
35.357.ak (01)
35.355.ak (05)
3
3
90.160.by (03)
35.357.ak (01)
2
1
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150498A1

MOUNTING CLIP

4шт.

2

166351A1

BOLT,Sems, M10 x 20mm

2шт.

3

KHR21050

PLASTIC-RUBBER TUBE

2шт.

4

KHR31090

PROTECTIVE SLEEVE

2шт.
