(35.357.AK[01]) - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK

Запчасти Case CX80C (35.357.AK[01]) - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

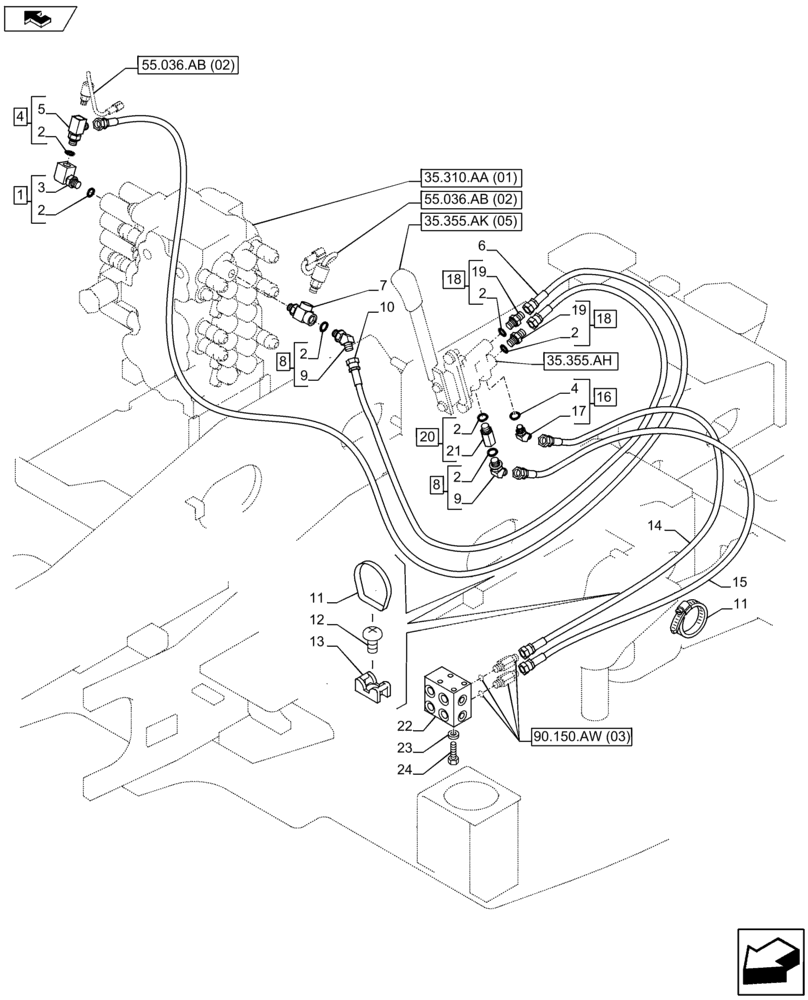

Схема запчастей Case CX80C - (35.357.AK[01]) - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS
2
3
18
18
16
11
35.355.ah
90.150.aw (03)
12
11
24
4
2
35.355.ak (05)
8
22
2
55.036.ab (02)
9
6
5
14
20
7
2
13
21
2
1
35.310.aa (01)
9
10
55.036.ab (02)
4
19
17
15
8
23
2
2
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ0719

ELBOW

Assy, Incl 2, 3

1шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

3

NSS

NOT SOLD SEPARAT

Elbow, Incl in 1

1шт.

4

KHJ2773

TEE

Assy, Incl 2, 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 4

1шт.

6

KHJ2389

HOSE

1шт.

7

KHJ12530

TEE

1шт.

8

150933A1

ELBOW

2шт.

9

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

10

KHJ2078

HOSE

1шт.

11

150496A1

MOUNTING CLIP

1шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

1шт.

13

150860A1

COLLAR

1шт.

14

KHJ2057

HOSE

1шт.

15

KHJ2311

HOSE

1шт.

16

KHJ0994

ADAPTER

Assy, Incl 2, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

18

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 2, 19

2шт.

19

NSS

NOT SOLD SEPARAT

Adapter, Incl in 18

1шт.

20

162525A1

STUD

Assy, Incl 2, 21

1шт.

21

NSS

NOT SOLD SEPARAT

Stud, Incl in 20

1шт.

22

KRJ5903

MANIFOLD

1шт.

23

153081A1

WASHER

4шт.

24

828-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.
