(35.353.AE[02]) - TRAVEL MOTOR HOSE

Запчасти Case CX80C (35.353.AE[02]) - TRAVEL MOTOR HOSE (35) - HYDRAULIC SYSTEMS

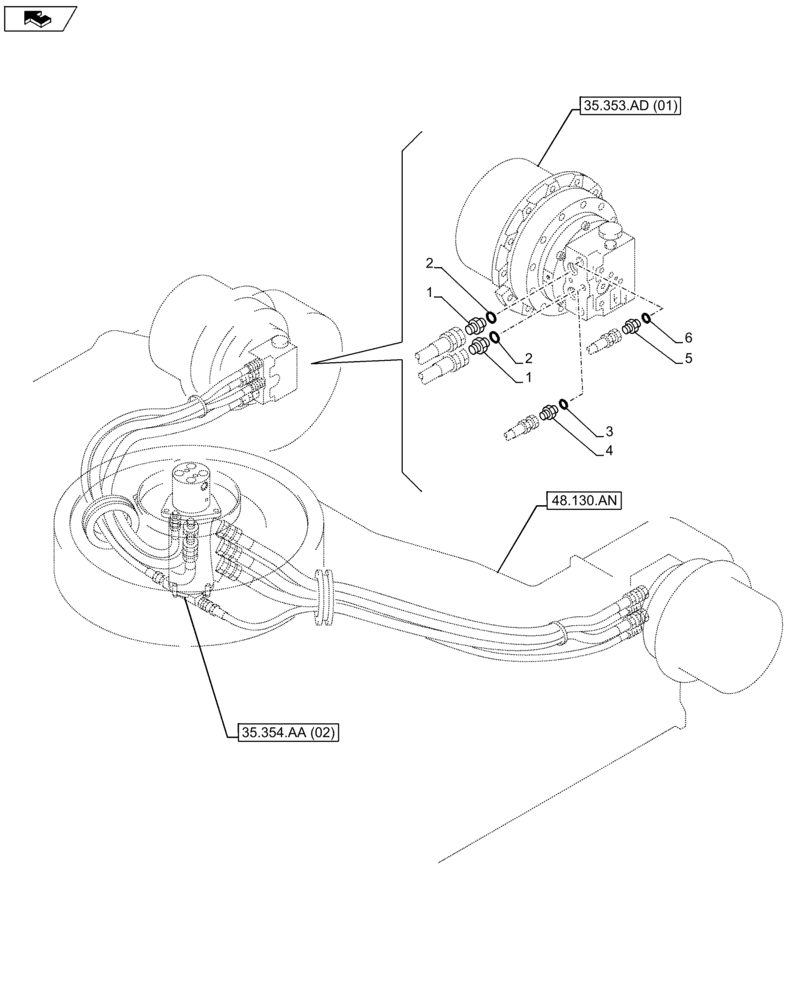

Схема запчастей Case CX80C - (35.353.AE[02]) - TRAVEL MOTOR HOSE (35) - HYDRAULIC SYSTEMS
6
5
2
35.354.aa (02)
35.353.ad (01)
1
1
4
3
2
48.130.an
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

2шт.

2

154487A1

O-RING

2шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

1шт.

6

154475A1

O-RING

1шт.

Выбрано товаров: 0
