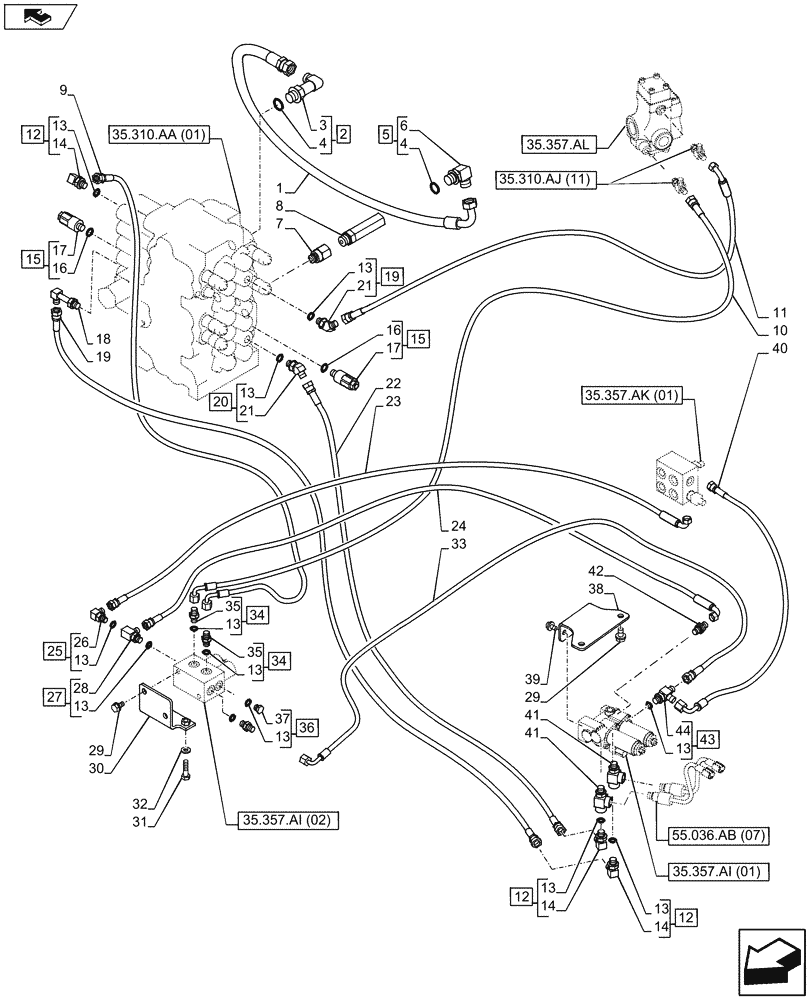

Запчасти Case CX80C (35.310.AJ[12]) - VAR - 461868 - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KAJ4101

HYDRAULIC HOSE

1шт.

2

KAJ1044

1шт.

3

154487A1

O-RING

2шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 2

1шт.

5

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

Assy, Incl 3, 6

1шт.

6

NSS

NOT SOLD SEPARAT

Elbow, Incl in 5

1шт.

7

KHJ30660

STUD

1шт.

8

KHJ20590

VALVE

1шт.

9

KHJ2340

HOSE

1шт.

10

KHJ20460

FLEXIBLE HOSE

1шт.

11

KHJ2166

HOSE,6.3mm ID x 2300mm L

1шт.

12

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 13 - 14

3шт.

13

154467A1

O-RING,10.8mm ID x 2.4mm Width

11шт.

14

NSS

NOT SOLD SEPARAT

Elbow, Incl in 12

3шт.

15

KAJ4876

HYDRAULIC VALVE

Incl 16 - 17

2шт.

16

155222A1

O-RING

2шт.

17

NSS

NOT SOLD SEPARAT

Valve, Incl in 15

2шт.

18

KHJ1178

ELBOW

1шт.

19

KHJ20480

HYDRAULIC HOSE

1шт.

20

150933A1

ELBOW

45�, Assy, Incl 13, 21

2шт.

21

NSS

NOT SOLD SEPARAT

Elbow 45�, Incl in 20

2шт.

22

KHJ2063

HOSE

1шт.

23

KHJ2179

HOSE

1шт.

24

KHJ2084

HOSE

1шт.

25

KHJ0917

ADAPTER

Assy, Incl 13, 26

1шт.

26

NSS

NOT SOLD SEPARAT

Elbow, Incl in 25

1шт.

27

KHJ2773

TEE

Assy, Incl 13, 28

1шт.

28

NSS

NOT SOLD SEPARAT

Tee, Incl in 27

1шт.

29

166351A1

BOLT,Sems, M10 x 20mm

4шт.

30

KAJ16700

BRACKET

1шт.

31

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

32

150409A1

WASHER

2шт.

33

KHJ2181

HOSE

1шт.

34

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Adapter, Assy, Incl 13, 35

3шт.

35

NSS

NOT SOLD SEPARAT

Adapter, Incl in 34

3шт.

36

159002A1

PLUG

Assy, Incl 13, 37

1шт.

37

NSS

NOT SOLD SEPARAT

Plug, Incl in 36

1шт.

38

KHJ28770

BRACKET

2шт.

39

166345A1

BOLT

2шт.

40

KHJ2342

HOSE

1шт.

41

KHJ12530

TEE

1шт.

42

161841A1

HYD CONNECTOR

1шт.

43

159497A1

TEE

Assy, Incl 13, 44

1шт.

44

NSS

NOT SOLD SEPARAT

Tee, Incl in 43

1шт.
