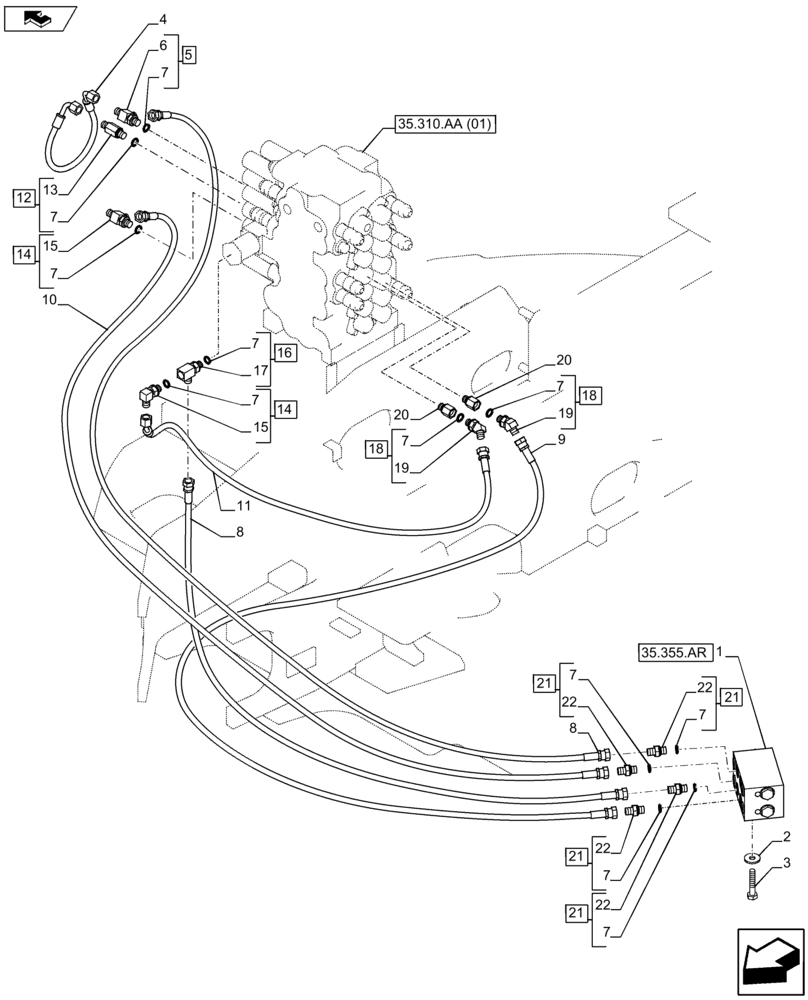

Запчасти Case CX80C (35.310.AJ[06]) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

KAJ11831

VALVE, CUSHION

1шт.

2

151977A1

WASHER

3шт.

3

827-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 10.9

3шт.

4

KHJ28120

HOSE

1шт.

5

159497A1

TEE

Assy, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Tee, Incl in 5

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

8

KHJ2075

HOSE

2шт.

9

KHJ2312

HOSE,6mm ID x 2500mm L

1шт.

10

KHJ2073

HOSE

1шт.

11

KHJ20490

HOSE

1шт.

12

162554A1

FITTING

Assy, Incl 7, 13

1шт.

13

NSS

NOT SOLD SEPARAT

Adapter, Incl in 12

1шт.

14

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 7, 15

2шт.

15

NSS

NOT SOLD SEPARAT

Elbow, Incl in 14

1шт.

16

KHJ2773

TEE

Assy, Incl 7, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Elbow, Incl in 16

1шт.

18

150933A1

ELBOW

Assy, Incl 7, 19

2шт.

19

NSS

NOT SOLD SEPARAT

Elbow, Incl in 18

1шт.

20

KHJ13640

STUD

2шт.

21

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 7, 22

4шт.

22

NSS

NOT SOLD SEPARAT

Adapter, Incl in 21

1шт.
