(35.310.AJ[04]) - VAR - 481064,461559 - CONTROL VALVE LINE

Запчасти Case CX80C (35.310.AJ[04]) - VAR - 481064,461559 - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

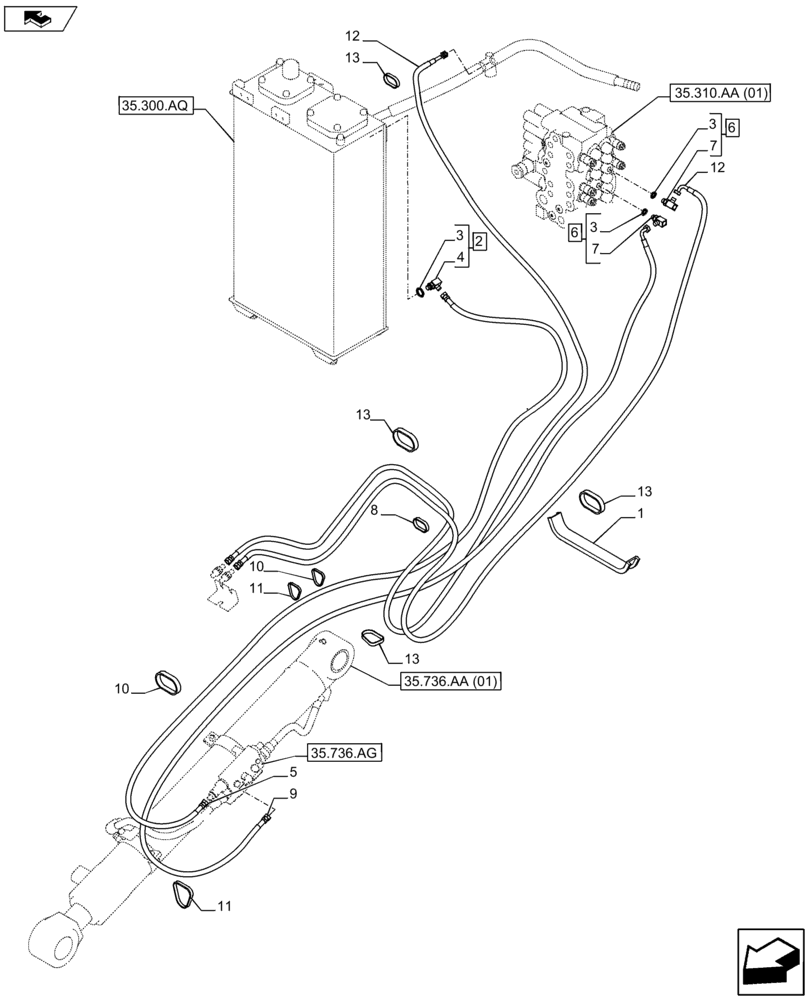

Схема запчастей Case CX80C - (35.310.AJ[04]) - VAR - 481064,461559 - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
6
10
3
7
3
9
5
35.300.aq
12
13
35.736.aa (01)
13
35.736.ag
1
35.310.aa (01)
2
4
10
13
11
11
3
8
13
12
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAJ10120

SEAL PROTECTION

1шт.

2

KHJ2773

TEE

Assy, Incl 3, 4

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

NSS

NOT SOLD SEPARAT

Tee, Incl in 2

1шт.

5

KHJ21950

HYDRAULIC HOSE

L3400

1шт.

6

KHJ2773

TEE

Assy, Incl 3, 7

2шт.

7

NSS

NOT SOLD SEPARAT

Tee, Incl in 6

1шт.

8

150496A1

MOUNTING CLIP

250 MM

2шт.

9

KHJ30640

HYDRAULIC HOSE

1шт.

10

150071A1

MOUNTING CLIP

374 MM

4шт.

11

150496A1

MOUNTING CLIP

250 MM

3шт.

12

KHJ17020

HYDRAULIC HOSE

2шт.

13

150071A1

MOUNTING CLIP

374 MM

6шт.
